AE Techron 8520 Amplifier Rentals

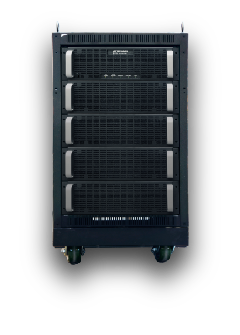

AE Techron 8520 Amplifier

The AE Techron 8520 Amplifier is a wide-bandwidth, high-power digital amplifier that provides 20kW output power and 300A RMS output current. AE Techron 8520 Amplifiers possess a collection of advantages: wide bandwidth, very low noise, high efficiency and the ability to safely drive a wide variety of load types and impedances.

This combination of abilities, flexibility, and ease-of-use makes the AE Techron 8520 Amplifier a singular solution for many common and some previously unsolvable amplifier applications. 8520 amplifiers can be used for EMC conducted immunity testing, MIL-PRF capacitor tests, DC automotive dropout testing and as a variable AC source for ISO 61000, Aviation and Power Quality Measurements.

The AE Techron 8520 Amplifier is the fifth model in the AE Techron 8500 Series of amplifiers.

AE Techron 7228 Linear Power Amplifier

DC – 1 MHz
Gain: 20V
AC Power: 1000W RMS

AE Techron 7224 Linear Power Amplifier | DC – 300 kHz, 900 W

Frequency bandwidth of DC to 300 kHz at rated power.
Continuous output of over 1,100 watts RMS at 4 ohms.
40 mSec pulses of up to 52 amperes peak into a 0.5 ohm load.

AE Techron 7796HC DC Power Amplifier | 30 kHz, 6600 Watts

Frequency bandwidth of DC to 75 kHz at rated power, DC to 150 kHz at reduced power.
System output of over 600 amperes maximum are possible with multiple, interconnected amplifiers.
For DO-160, MIL 461, and MIL 704.

BOLAB 100-TS Series | DC up to 1 MHz, 400 W – 18000 W

Bandwith: DC up to 1 MHz
Output: 400 W – 18000 W
For LV124 / VW80000, LV148, ISO 16750, ISO 7637, DIN 40839, and GS 95024

AE Techron 8704 Linear Power Amplifier | 250 kHz, 60 ARMS

Bandwidth: DC to 250 kHz.
Maximum Continuous Output Current: 60 ARMS.
Capable for ISO 61000 and aviation testing, and DC automotive dropout testing.

Front image of the BOLAB Systems BLS-130-70N-TS

BOLAB Systems BLS-130-70N-TS 4-Quadrant Voltage Amplifier

DC up to 1 MHz (small signal -3 dB)
Ouput: 3,000 W
For LV124 / VW80000, LV148, ISO 16750, ISO 7637, DIN 40839, GS 95024

AE Techron 7782 RMS Power Amplifier | DC-50kHz, 3.3kW

Bandwidth: DC to 50 kHz at rated power into 8 ohms; DC to 100 kHz at reduced power.
Output: 500 volts and 200 amperes maximum are possible with multiple, interconnected amplifiers.
For MIL-STD-461 and DO-160 testing.

AE Techron 7136 AC/DC Amplifier with Precision DC Power Supply | 400 kHz, 900 W

Bandwith: 400 kHz
Output: 900 watts RMS
For DO-160 Section 16

AE Techron 9110 Amplifier | DC to 250 kHz, 5 kW

Bandwith: DC to 250 kHz
Power Output: 5 kW
For conducted immunity testing in the automotive and aviation markets

AE Techron 7796 DC Power Amplifier | DC to 100 kHz, 6.6 kW

DC – 50kHz (rated) | DC – 100kHz (reduced)
6.6 kW Output Power
ANSI-T1-315-2001 or MIL-STD-704.

AE Techron 7794 4-Quadrant Power Amplifier | DC to 100 kHz, 5 kW

Bandwith: DC to 100 kHz.
Output Power: 5 kW.
For military, aviation and automotive test standards.

AE Techron 8500 Series Amplifiers | DC to 50 kHz, 60 to 300 ARMS

Bandwidth: DC to 50 kHz
Current: 60 to 300 ARMS
For Mil-PRF capacitor tests, DC automotive dropout testing, and as a variable AC source for ISO 61000, Aviation and Power Quality Measurements.

Maximum Continuous Output Current	300A RMS
Surge Rating	2X power at up to 400 VP or 750A
Apparent Power Rating	Up to 5X continuous power rating atup to 400 VP or 750A
Supply Voltage	Three-phase, 208V ±10%, 60A, 50/60 Hz; 400V ±10%, 15A version available
Dimensions (HxWxD)	36.5 x 21.0 x 30.75 inches (92.7 x 53.3 x 78.1 cm)
