ATEC is highlighting some newly available EMC equipment rentals. We have solutions for MIL/aerospace, automotive (EV), and commercial/medical test standards. All are in stock and available to rent now.
MIL/Aero Solutions

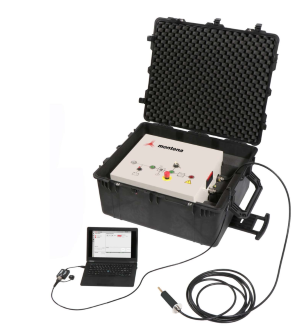

Montena PPG-E1-1200 Short Pulse EMP Portable Generator
- Short circuit current: 50 A -1.2 kA
- Open circuit voltage: 3 kV - 80 kV
- Pulse rise time: <20 ns
- Pulse duration: 500 ns
- Fulfills MIL-STD-188-125-1 & MIL-STD-188-125-2
Commercial Solution

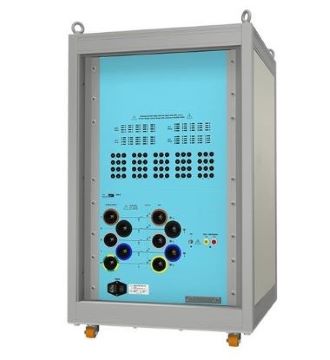

EMC Partner CDN-A-8-200 3-Phase Coupling-Decoupling Network
- 3-phase automatic CDN
- Voltage DC: 1500 VDC
- Voltage AC: 690 VAC
- Current: 200 A
- Fulfills IEC61000-4-4, IEC61000-4-5, IEC61000-4-12, ANSI C62.45, ECE R10
Automotive Solution

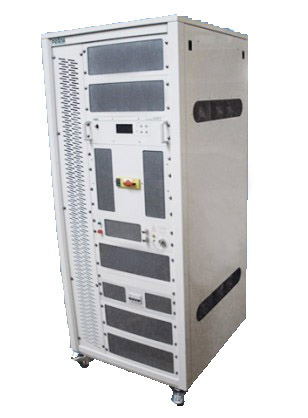

Prana DP-5000 Solid State Class A Amplifier
- Frequency Range: 9 kHz - 250 MHz
- Output Power: 5000 W
- Gain: 67 dB
- Impedance: 50 ohms / VSWR: 2:1 max
EMI Receivers/ Emissions_4.png "emi-rec-copy2-(2).png")

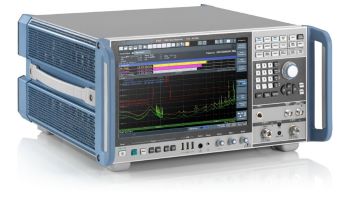

Rohde & Schwarz ESW44
- Frequency Range: 1 Hz- 44 GHz
- Measurement Bandwidth: Up to 80 MHz
- Residual Spurious Responses ((1 MHz ≤ f ≤ 1 GHz): <-110 dBm
- Fulfills certification standards like CISPR & FCC

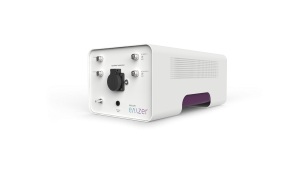

Emzer EMSCOPE
- Frequency Range: 9 kHz - 110 MHz
- Two simultaneous EMI receivers with PK, QPK, and AVG detectors for both channels
- Both channels can be run in parallel and real time
- Integrated test software
- Fulfills CISPR 16-1-1 & CISPR 16-1-2

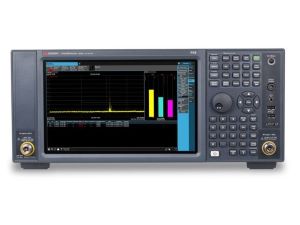

Keysight N9048B PXE
- Frequency Range: 1 Hz - 44 GHz
- Maximum Analysis Bandwidth: 40 MHz
- Phase Noise @ 1 GHz (10 KHz offset): -114 dBc/Hz
- Fulfills compliance standards such as CISPR & MIL-STD-461

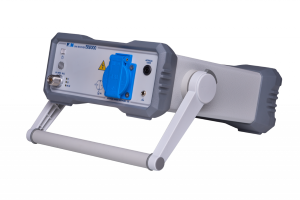

PMM ER8000
- Frequency Range: 9 kHz - 3 GHz
- Direct analog to digital conversion up to 30 MHz
- Operates gapless FFT
- 140 dBµV (2 W) maximum input level without damage
- Fulfills CISPR 16-1-1, MIL-STD-461, ANSI C63.2 & FCC

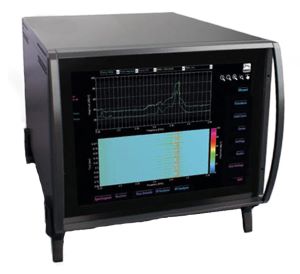

Gauss Instruments TDEMI ULTRA40
- Frequency Range: 9 kHz - 40 GHz
- Real-Time Bandwidth: Up to 685 MHz
- Sampling Rate: 2.6 GS/s
- Fulfills CISPR 16-1-1, ANSI C63.2, MIL-STD-461, DO-160 standards

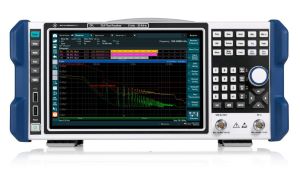

Rohde & Schwarz EPL1000
_4.jpg "EPL1000_pic-1-(5).jpg")
- Frequency Range: 5 kHz - 30 MHz
- Frequency Resolution: 0.01 Hz
- Time domain scan
- Tracking generator
- Pulse protected input
If you have any questions or interest in renting these products please feel free to reach out to Kevin Croppo or Oliver Paquin.
Kevin: 800 404 2832 ext. 301 or kevin@atecorp.com (Cell: 619 922 0674)
Oliver: 800 404 2832 ext. 307 or opaquin@atecorp.com
