E-Field Probes - July 2024 Spotlight

This month our team at ATEC is highlighting some of our most popular e-field probe testers. All are in stock and available to rent now.


Amplifier Research

FA7060/Kit Electric Field Analyzer

• Frequency Range: 2MHz–60GHz
• Amplitude Accuracy:
  • ±1.0dB @ 10MHz
  • 0.95dB, 2MHz–1GHz
  • 1.5dB, 1GHz–60GHz
• Isotropic Deviation:
  • ±1.0dB @ 10MHz ≤200V/m
  • ±2.0dB @ 10MHz >200V/m
• Operating Range: 14–1400V/m

​

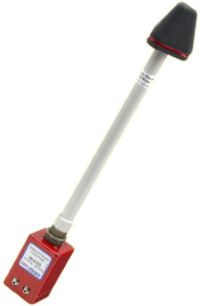

ETS-Lindgren

HI-6053 Electric Field Probe | 10 MHz - 40 GHz

• Detection: Isotropic (X, Y, and Z Axis Readings)
• Frequency Response with Correction:
  • 10 MHz to 18 GHz ± 0.9 dB
  • 18 to 40 GHz ± 1.1 dB
• Frequency Range: 10 MHz to 40 GHz
• Frequency Response:
  • 10 to 100 MHz + 3.0, -4.0 dB
  • 100 MHz to 1 GHz +3.0, -0.50 dB
  • 1 to 18 GHz +4.0, -2.0 dB
  • 18 to 40 GHz +3.5, -4.5 dB

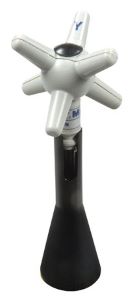

PMM

EP-604 Electric Field Probe Series | 300 kHz to 26.5 GHz

• Frequency range: 300 kHz to 26.5 GHz
• Flatness:
  • Frequency correction OFF
    10 to 18000 MHz: 1.8 dB
    3 to 23000 MHz: 3.2 dB
  • Frequency correction ON, typical
    0.3 to 26500 MHz: 0.4 dB
• Dynamic Range: 0.4 to 800 V/m 66 dB single range
• Overlord: 1600 V/m
• Dimensions (overall): 45 mm
• Weight (incl. 1 m fiber optic pigtail): 22 g



Narda

ELT-400 Exposure Level Tester | 1 Hz - 400 kHz

Magnetic (B-) Field
Sensor System	Coil (100 cm2)
Measurement Axis	Tri-Axial (isotrop)
Exposure STD Mode
Frequency Range (-3dB), selectable	1 Hz to 400 kHz, 10 Hz to 400 kHz, 30 Hz to 400 kHz
Exposure Evaluation	Compared to Standard
MODE	ICNIRP		BGV B11		EN 50366
RANGE	LOW	HIGH	LOW	HIGH	LOW	HIGH
Overload Limit	160%	1.600%	160%	1.600%	160%	1.600%
Nominal Range	10%	100%	10%	100%	10%	100%
Noise Level, approximate	1.3%	6%	0.4%	6%	0.4%	6%
Damage Level RMS (Peak)	160 mT (226 mT)
Resolution (RANGE: LOW)	0.001 %
Detection, selectable	Automatic according to selected Standard or RMS (averaging time 1 s) or Peak Value
Field Strength Mode
Frequency Range (-3dB), selectable	1 Hz to 400 kHz, 10 Hz to 400 kHz, 30 Hz bis 400 kHz
Frequency Response	Flat
MODE	320 µT		8 mT		80 mT
RANGE	LOW	HIGH	LOW	HIGH	LOW	HIGH
Overload Limit	32 µT	320 µT	800 µT	8 mT	8 mT	80 mT
Nominal Range	2 µT	20 µT	50 µT	500 µT	500 µT	5 mT
Noise Level, approximate	70 nT	320 nT	1.8 µT	8 µT	18 µT	80 µT
Damage Level RMS (Peak)	160 mT (226 mT)
Resolution (RANGE: LOW)	1 nT
Overall Uncertainty	±4 % (50 Hz to 120 kHz)
Detection, selectable	RMS (averaging time 1 s) or Peak Value
Display Mode, selectable	Instantaneous or Max Hold

Narda

EF 6091 NBM E-Field Probe | 100 MHz - 60 GHz



• Frequency: 100 MHz - 60 GHz
• Measurement range: 0.7 - 300 V/m
• Dynamic range: 35 dB
• Dimensions: 318 mm x 66 mm Ø
• Weight: 90 g

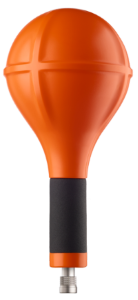

Narda

WP400 Probe | 1 Hz - 400 kHz

	Electric Field	Magnetic Field
Sensor type	Isotropic patented electrodes
Frequency range	1 Hz – 400 kHz	1 Hz – 400 kHz
Field Strength Mode
Measurement range	1 V/m to 100 kV/m	50 nT - 10 mT (100 Hz - 10 kHz)
Graphical display	RMS, Axis Values, AVG, MAX, MIN, PEAK, RMS time graph
Peak value	Digital realtime	Digital realtime
Resolution	< 0.4 mV/m above 8 Hz	< 0.1 nT (at 50 Hz) and < 0.05 nT above 100 Hz
Noise level	< 1 V/m (10 Hz - 400 kHz)	< 50 nT (10 Hz – 400 kHz)
Weigthed Peak Method Mode
Measurement range	200 % (min)	200 % (min)
Graphical display	PEAK (%), AXIS VALUES (%), AVG (%), MAX (%), MIN (%), RMS (%), time graph
Standards/Limits	EU Directive 2013/35/EU, FCC/IEEE, ICNIRP, BGV B11.
