CMM & 3D Laser Scanners Spotlight- June 2024

This month ATEC is highlighting some newly available CMM & 3D Laser Scanners. All are in stock and available to rent now.


Hexagon

Hexagon ROMER Absolute Arm 7325 SI

• Measuring Range: 2.5 m
• Probing point repeatability (mm): 0.049
• Probing volumetric accuracy (mm): +/-0.069
• Scanning system accuracy: 0.084
• Arm weights (kg): 8.6



Artec

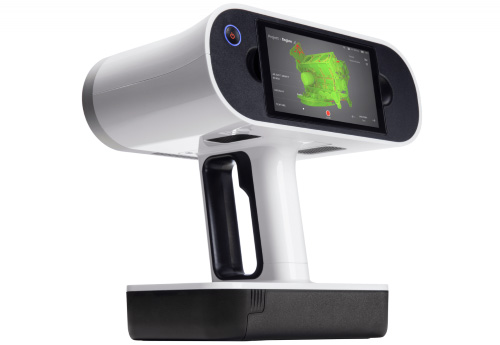

Artec Leo 3D Scanner

• Dimensions (H x L x W): 231 × 162 × 230 mm (9.09 x 6.38 x 9.06 in)
• Weight: 2.6 kg (5.7 lb.)
• 3D point accuracy: Up to 0.1 mm
• 3D resolution: Up to 0.2 mm
• 3D accuracy over distance: Up to 0.1 mm + 0.3 mm/m
• Working distance: 0.35 – 1.2 m
• Volume capture zone: 160,000 cm³
• Texture resolution: 2.3 mp
• Exposure time: (3D: 0.0002 s | 2D: 0.0002 s)
• Light source: (3D: VCSEL | 2D: white 12 LED array)
• Algorithms: HD Mode, Hybrid geometry and texture tracking, Geometry and texture based data processing algorithms, ​Auto background removal



Faro

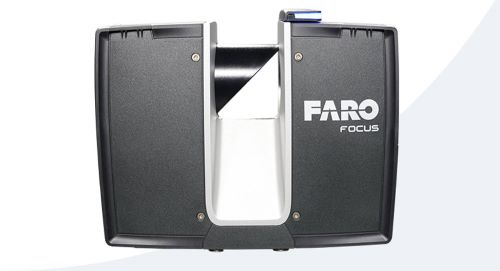

FARO Focus Premium Laser Scanner

• Field of View: Vertical: 300° | Horizontal: 360°
• Range: 0.5 – 150 m (White, 90% reflectivity; dark gray, 10% reflectivity); 0.5 – 50 m (Black, 2% reflectivity)
• Maximum Scan Speed: 97 Hz (vertical)
• Power Supply: 19 V (external supply) | 14.4 V (internal battery)
• Typical Scan Time: About 1 minute
• Humidity: Non-condensing
• Typical Battery Operation Time: About 4 hours
• Laser Class: Laser Class 1
• Dimensions: 230 x 183 x 103 mm (9.1 x 7.2 x 4.1 in)
• Weight: 4.4 kg (9.7 lb.) including battery

If you have any questions or interest in renting these products please feel free to reach out to Nicol Hudnall or Cesar Herrera.

Nicol: (800)-404-2832 ext. 323 or nhudnall@atecorp.com
Cesar: (800)-404-2832 ext. 309 or cherrera@atecorp.com
