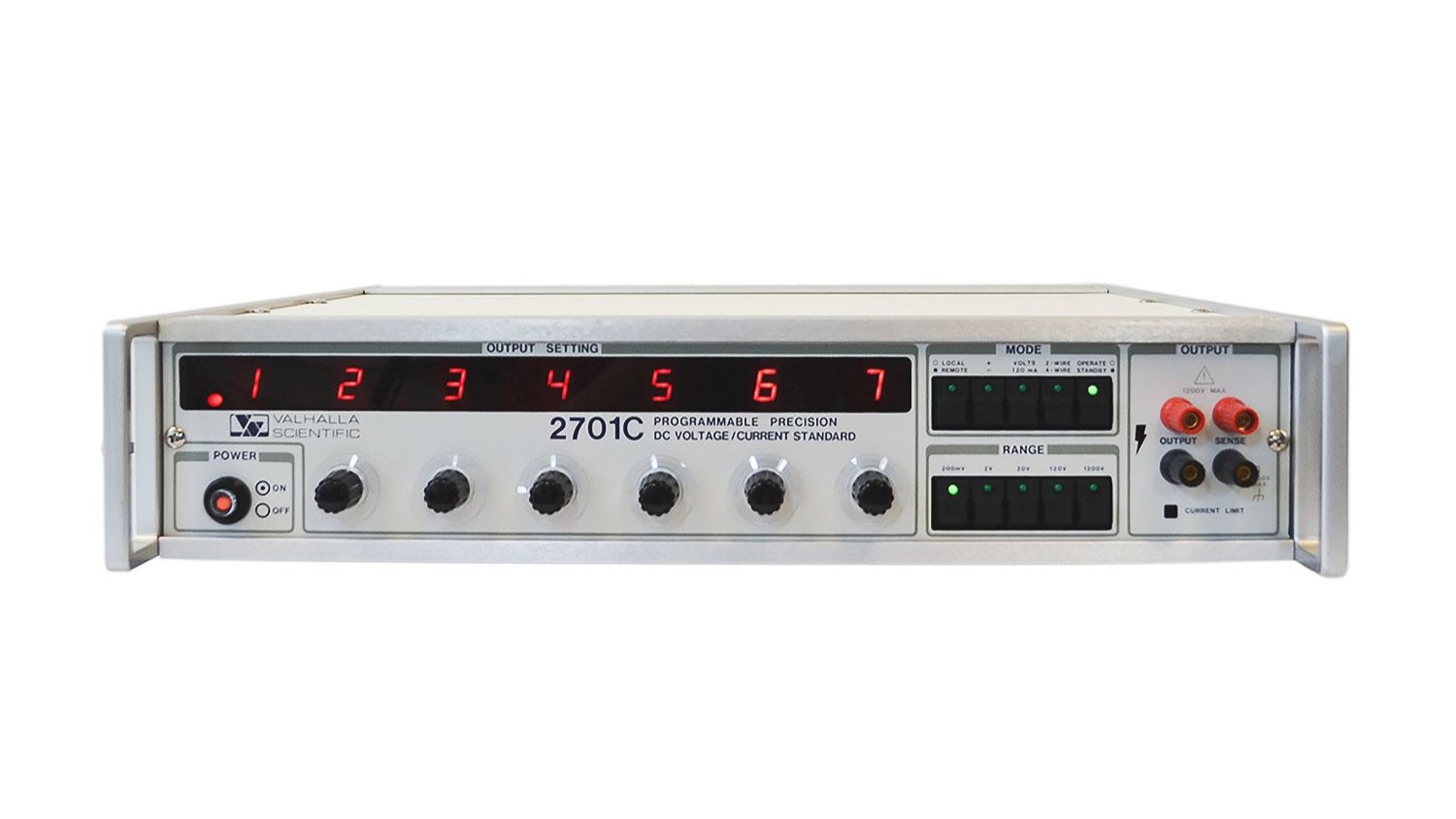

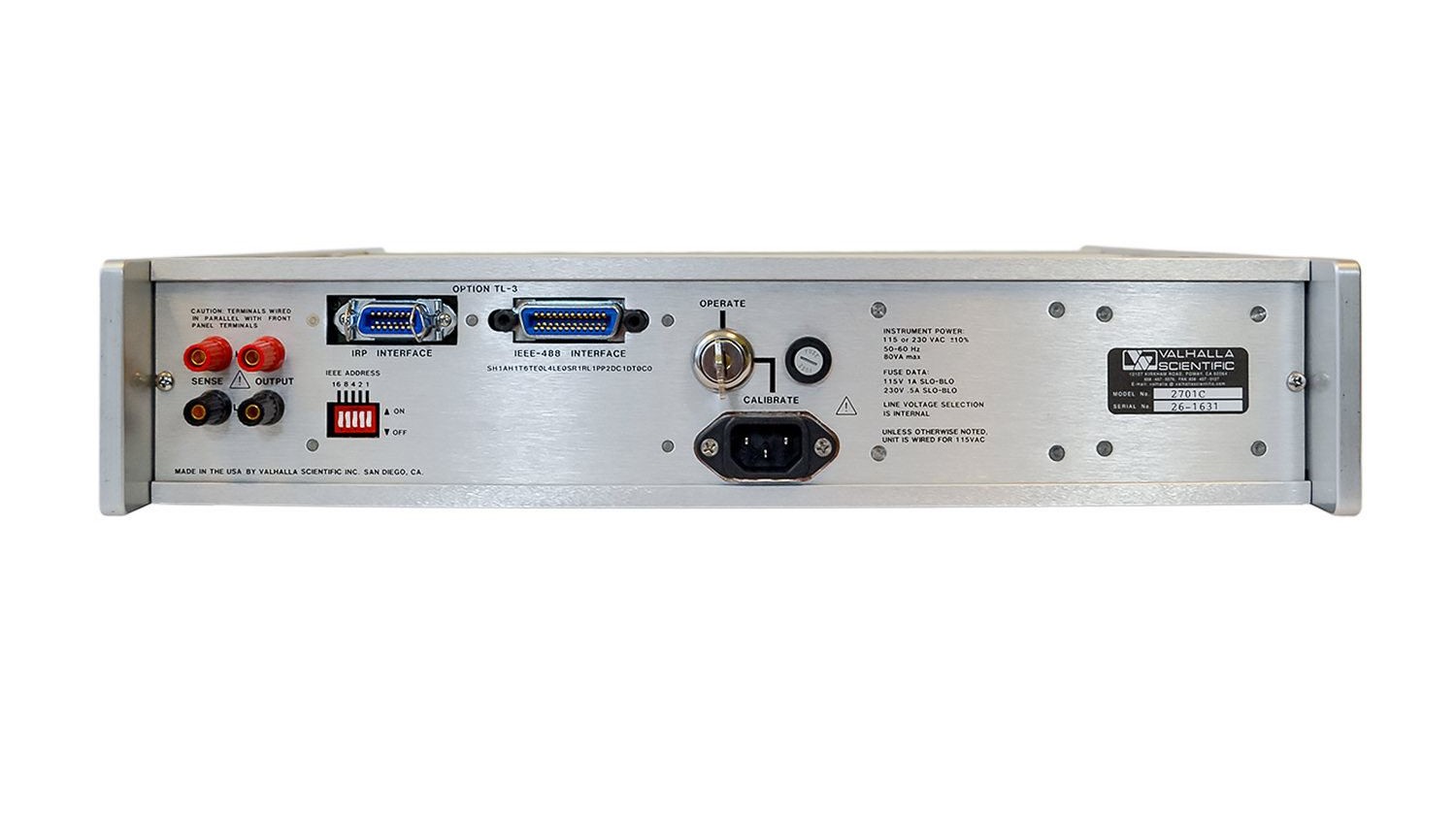

Valhalla 2701C Precision Programmable DC Voltage Calibrator
The Valhalla 2701C Precision Programmable DC Voltage Calibrator is a precise and easy-to-use instrument with 5 voltage ranges from 200 mV to 1200 V. With automatic calibration, a warm-up time of about 15 seconds, and more, the 2701C is the ideal device for a variety of testing requirements. This model has an operating temperature of 0°C to 50°C and a storage temperature of -30°C to 70°C.
| Model | 2701C |
| Current Sourcing All Active Range | 25 mA |
| Full Scale Divided Output Range | 200 mV |
| Voltage Ranges | 200 mV, 2 V, 20 V, 120 V, 1200 V |
| Resolution | 0.5 PPM |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Warm-Up Time | 15 seconds |
| Dimensions (W x H x D) | 17 x 3.5 x 17 in (43 x 9 x 43 cm) |
| Weight | 24 lb. (11 kg) |
- "Cover-on" automatic calibration
- 100% over-range
- Automatic bi-polar output
- 200 mV full scale divided output range
- All outputs available through 2 terminals
- 25 mA current sourcing all active range
- 5 voltage ranges
- Illuminated high voltage warning
- 0.5 PPM resolution
SKU: VALH-2701C
