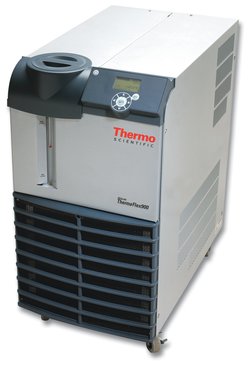

Thermo Fisher Scientific ThermoFlex Series | -5°C – 90°C, 900 – 24000 W

The Thermo Fisher Scientific ThermoFlex is a series of recirculating chillers designed for the most demanding applications. The chillers’ configurable design allows users to choose from a wide range of cooling capacities and options to create the right fit for your application. With a temperature range of -5°C to 90°C depending on model, ThermoFlex chillers are ideal for analytical, biotech, industrial, laser, metrology, pharmaceutical, packaging, printing, and research applications. The models have a workspace volume of up to 17.9 liters, and the “full flow” filter ensures clean fluid to protect your application and maximize recirculation system life. The ThermoFlex series units, with a cooling capacity up to 24,000 watts (81,964 BTU/hr) varying per model, are configurable to meet your application demands.

The Thermo Fisher Scientific ThermoFlex series consists of the following models:
900 – 2500 W cooling: ThermoFlex 900, ThermoFlex 1400, ThermoFlex 2500
3500 – 10000 W cooling: ThermoFlex 3500, ThermoFlex 5000, ThermoFlex 10000
20000 – 24000 W cooling: ThermoFlex 20000, ThermoFlex 24000

Product Info Related Products

	ThermoFlex 900	ThermoFlex 1400	ThermoFlex 2500	ThermoFlex 3500	ThermoFlex 5000	ThermoFlex 10000	ThermoFlex 20000	ThermoFlex 24000
Cooling capacity (60 Hz at 20°C)	900 W / 3074 BTU	1400 W / 4781 BTU	2500 W / 8538 BTU	3500 W / 11953 BTU	5000 W / 17076 BTU	10000 W / 34100 BTU	20000 W / 68304 BTU	24000 W / 81964 BTU
Cooling capacity (50 Hz at 20°C)	750 W / 2559 BTU	1170 W / 3996 BTU	2200 W / 7513 BTU	3050 W / 10416 BTU	4400 W / 15027 BTU	8500 W / 28985 BTU	16700 W / 57043 BTU	21000 W / 71719 BTU
Workspace Volume	7.2 l	7.2 l	7.2 l	7.2 l	7.2 l	17.9 l	17.9 l	17.9 l
Temperature Low	5°C	5°C	-5°C	5°C	-5°C	-5°C	5°C	-5°C
Temperature High	40°C	90°C	90°C	90°C	90°C	90°C	40°C	55 °C
Exterior Dimensions (H x W x D)	14.2 x 24.6 x 27.3 in (36 x 62.4 x 69.2 cm)	14.2 x 24.6 x 27.3 in (36 x 62.4 x 69.2 cm)	17.2 x 26.5 x 29 in (43.6 x 67.3 x 73.6 cm)	19.3 x 30.9 x 38.9 in (48.8 x 78.4 x 98.7 cm)	38.9 x 19.3 x 30.9 in (98.7 x 48.8 x 78.4 cm)	25.2 x 33.8 x 52.3 in (63.9 x 85.6 x 132.7 cm)	46.5 x 30.9 x 49.0 in (118.1 x 78.6 x 124.4 cm)	46.5 x 30.9 x 58.6 in (118.1 x 78.6 x 148.9 cm)
