Tenny's T2 Temperature and Humidity Chambers simulate a broad range of environmental conditions and utilize a compact external design while maximizing internal workspace. The steel interiors are continuously welded with through-wall ports and are vapor tight.
The T2RC comes with the VersaTenn III Control System, including humidity cycling capabilities and a programmable, bidirectional control with an alpha-numeric display. The Tenney T2 RC Chamber's controller allows for 99 step programming, nested-loop capability, delayed-start of up to two weeks, guaranteed soak feature, auto-select modes (cooling, heating, humidity), and connects to the RS-232 computer interface.
Features
- Vapor-tight, continuously welded stainless steel interiors
- Low workspace height to ease the loading and unloading of product
- Vertical recirculation conditioning system
- Platinum Resistance Temperature Detector (RTD)
- Electronic capacitive sensor
- Chamber overtemperature protection
- Cascade refrigeration system
- Built in safety devices

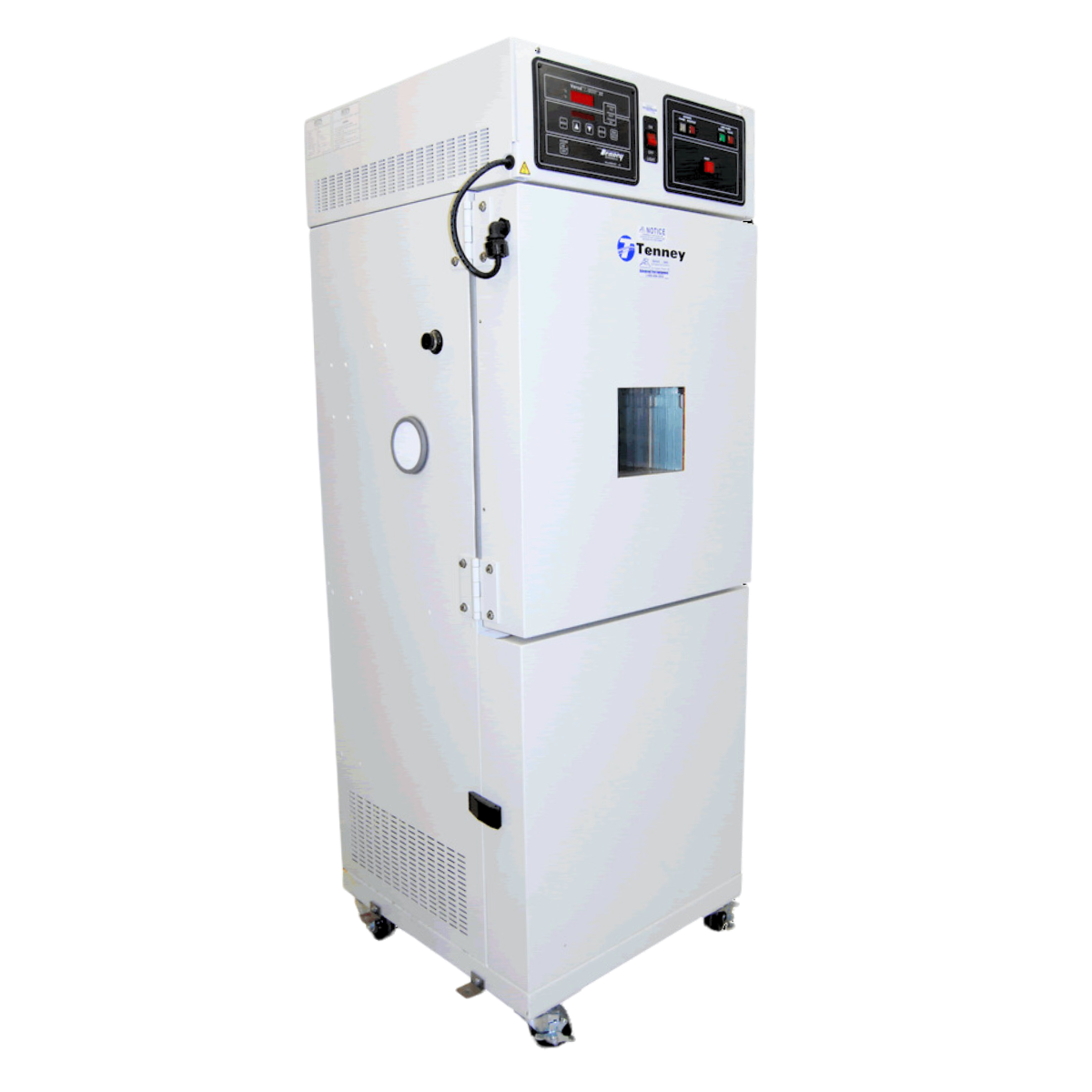

- Optional: Viewing window (as shown in photo), 6" x 7", thermally insulated and heated (no manual wiper required)
Specifications
| Temperature range & humidity |
-75...200°C |
| Humidity range |
20 - 95% in the dry bulb range of +20°C to 85°C as limited by a 5°C Dewpoint |
| Heat capacity |
500 W |
| Air flow rate |
50 CFM |
| Power frequency |
120V -1PH-60Hz |
| Interior volume |
2 ft3 |
| Dimensions (WxHxD) |
26 in x 27 in x 65 in |
