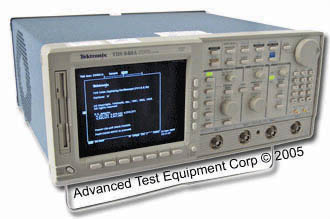

Tektronix TDS 640 Color Digitizing Oscilloscope 500 MHz, 2Gs/s

Discontinued


4 Ch, 500 MHz, 2Gs/s Digital Storage Oscilloscope

Product Info

Included Probes:

4 P6205 Active Probes: 10 x, 2 pF, 750 MHz FET



  • Channels: 4
  • Samplers: 4
  • Bandwidth: 500 MHz
  • Sensitivity Channel 1-4: 1 mV to 10 V/div
  • Maximum Sample Rate: 2 GS/s



Vertical System


  • Vertical Resolution: 8 bits (256 levels over 10.24 vertical divisions)
  • Analog Bandwidth Selections: 20 MHz, 100 MHz, and full
  • Input Coupling: AC, DC or GND
  • Input Impedance Selections: 1 M ohms in parallel with 10 pF, or 50 ohms (AC and DC coupling)



Time Base System


  • Time Bases: Main, Delayed
  • Time/Division Range: 500 ps to 5 s/div.
  • Record Length: 500 to 2000 pts.
  • Pre-Trigger Position: 20% to 80% of record



Measurement System: Automatic waveform measurements


Waveform Processing


  • Waveform Functions: Interpolate-selectable sin(x)/x or linear, Average, Envelope
  • Optional Advanced Waveform Functions: FFT, Integration, Differentiation (Check with Sales Rep for availability)
  • Arithmetic Operators: Add, Subtract, Multiply, Invert
  • Waveform Limit Testing



Computer Interface: GPIB (IEEE-488.2) Programmability


Hard Copy/Desktop Publishing


  • Printer: HP ThinkJet, Epson, PostScript, Deskjet, Laserjet
  • Export File Formats: EPS (Encapsulated PostScript), Interleaf, TIFF, PCX, BMP
  • Plotter Support: HPGL
  • Optional Hardcopy Interface: Centronics and RS-232C (Talk only)


SKU: TEKT-TDS640
-->
