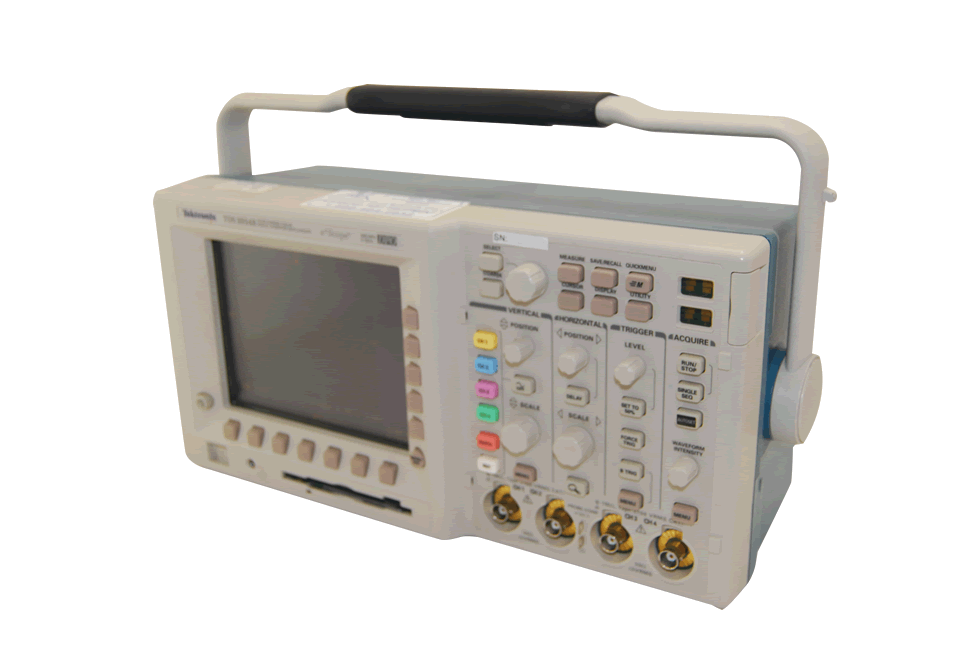

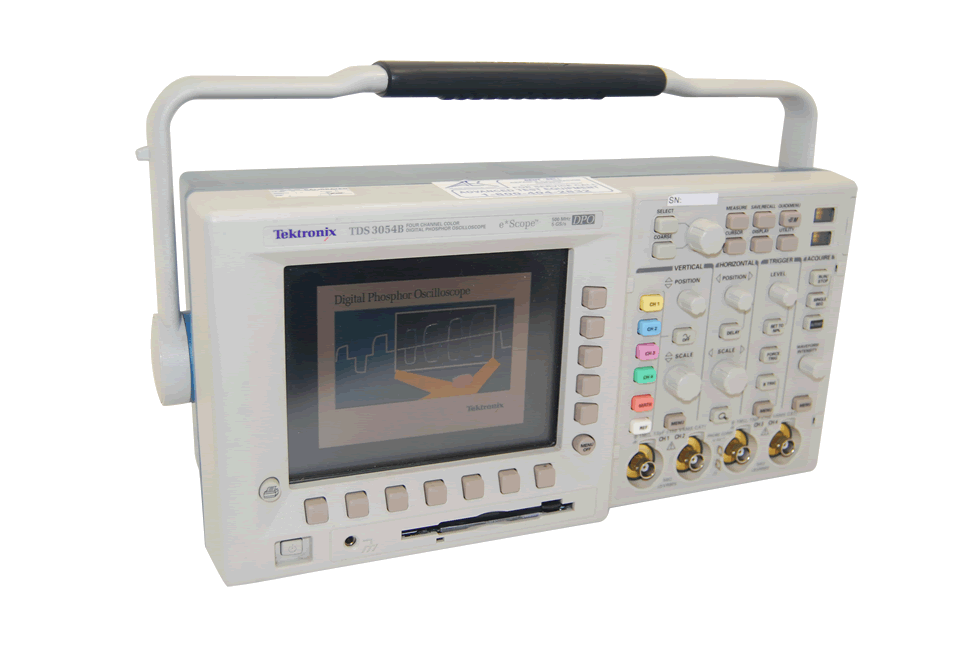

Tektronix TDS3054B Digital Oscilloscope 500 MHz, 5 GS/s

The Tektronix TDS3054B Digital Oscilloscope 500 MHz, 5 GS/s packs the power of digital phosphor oscilloscope technology, WaveAlert automatic anomaly detection, OpenChoice documentation and analysis solutions with e*Scope® web-based remote control, and five application-specific modules into a lightweight, battery-capable design.

DPO technology delivers superior insight into complex signals with the ability to display, store and analyze three dimensions of signal information in real-time: amplitude, time, and distribution of amplitude over time. Fast waveform capture rates make it easier to capture and display infrequent waveforms or waveform variations, while the intensity graded display helps you locate and characterize wave-form anomalies that can be elusive on traditional digital storage oscilloscopes.

WaveAlert waveform anomaly detection speeds your troubleshooting tasks by helping you find those elusive problems faster. WaveAlert detection monitors the incoming signals on all channels and will detect and highlight any waveform that deviates from the normal waveform being acquired. Because the Tektronix TDS3054B 4Channel, 500MHz Digital Oscilloscope can stop acquisition, sound a beep, make a hard copy or save the waveform when it detects an anomaly, you can run tests over long time periods even unattended to find those challenging, very infrequent failures.

Product Info Related Products

Bandwidth	500 MHz
Channels	4
Sample rate on each channel	5 GS/s
Maximum record length	10 K points on all models
Vertical resolution	9 Bits on all models
Vertical sensitivity (/div)	1 mV 10 V on all models
Vertical accuracy	±2% on all models*²
Max input voltage (1 MΩ)	150 V_RMS CAT I on all models (300 V CAT II with standard 10X probe)
Position range	± 5 div on all models
BW limit	20, 150 MHz
Input coupling	AC, DC, GND on all models
Input impedance selections	1 MΩ in parallel with 13 pF or 50 Ω
Time base Range	1 ns 10 s/div
Time base Accuracy	20 ppm
Display monitor	Color LCD
