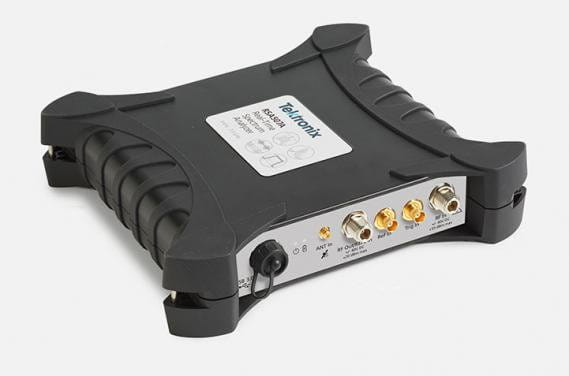

Tektronix RSA500 Real-Time Spectrum Analyzer Series
The Tektronix RSA500 Real-Time Spectrum Analyzer Series consists of several reliable spectrum analyzers with frequencies ranges of 9 kHz to 3.0 (for the RSA503A model), 9 kHz to 7.5 (for the RSA507A model), 9 kHz to 13.6 (for the RSA513A model), and 9 kHz to 18.0 GHz (for the RSA518A model). These models cover a wide range of testing requirements and help operators preserve the quality of a telecommunication system. The Tektronix RSA500 Series is ideal for interference hunting, spectrum monitoring, EMI/EMC compliance testing and troubleshooting, network maintenance, and more.
With real-time spectrum analysis, technicians can easily maintain RF networks and keep records. An analyzer in the RSA500 Series is USB-based with a bandwidth of 40 MHz and a dynamic range of 70 dB. The devices have a RF input impedance of 50 Ω, uses the SignalVu-PC program, and allows easy and effective testing. The accuracy of a RSA500 analyzer is excellent and all signals can be examined with various helpful applications. The RSA500 analyzers are user-friendly and keep the testing process precise and efficient.
Reach out to an ATEC rental agent today to learn more about Tektronix RSA500 Real-Time Spectrum Analyzer Series. We can also help you decide on the best interference hunting device based on your testing standards and requirements.

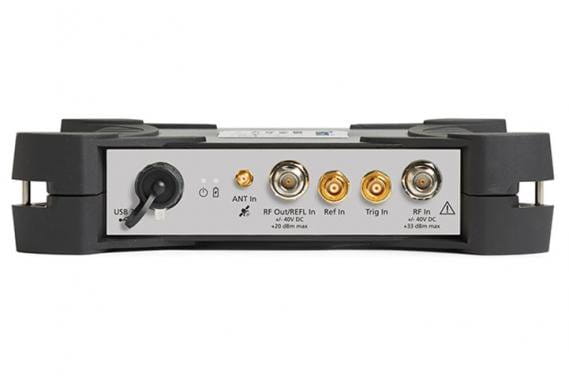

| Frequency ranges | RSA503A: 9 kHz to 3 GHz RSA507A: 9 kHz to 7.5 GHz RSA513A: 9 kHz to 13.6 GHz RSA518A: 9 kHz to 18.0 GHz |
| Acquisition bandwidth | 40 MHz |
| Dynamic range | 70 dB |
| Maximum DC voltage | ±40 V (RF input) |
| RF input impedance | 50 Ω |
| External reference input level | -10 to +10 dBm |
| External reference input range | ± 5 ppm |
| Full span sweep speed, typical mean | 70 GHz/sec (RBW = 1 MHz) 60 GHz/sec (RBW = 100 kHz) |
| External frequency reference input (port) | BNC, female |
- 9 kHz to 3.0/7.5 GHz frequency range covers a broad range of analysis needs
- 40 MHz acquisition bandwidth enables real time analysis for transient capture and vector analysis
- Standard GPS/GLONASS/Beidou receiver for mapping
- Optional tracking generator for gain/loss, antenna and cable measurements
- Streaming capture can be used to record and play back long term events
- Mil-Std 28800 Class 2 environmental, shock and vibration specifications for use in harsh conditions
- Internal battery for extended field operations
- SignalVu-PC software offers real time signal processing with DPX Spectrum/Spectrogram to minimize time spent on transient and interference hunting
- 100 μsec minimum signal duration with 100% probability of intercept ensure you see problems first time, every time
- Application programming interface included for development of custom programs
- Accessories including tablet PC, calibration kits, adapters and phases table cables offer a complete field solution for interference hunting and transmitter maintenance
- General purpose spectrum analysis
- Radio network installation and maintenance
- Spectrum monitoring
- Spectrum management
- Interference hunting
- EMI/EMC compliance testing and troubleshooting
- Spectrum operations
- Radiation hazard (RADHAZ) testing
- Emissions control (EMCON) monitoring
- Signal intelligence (SIGINT) monitoring
