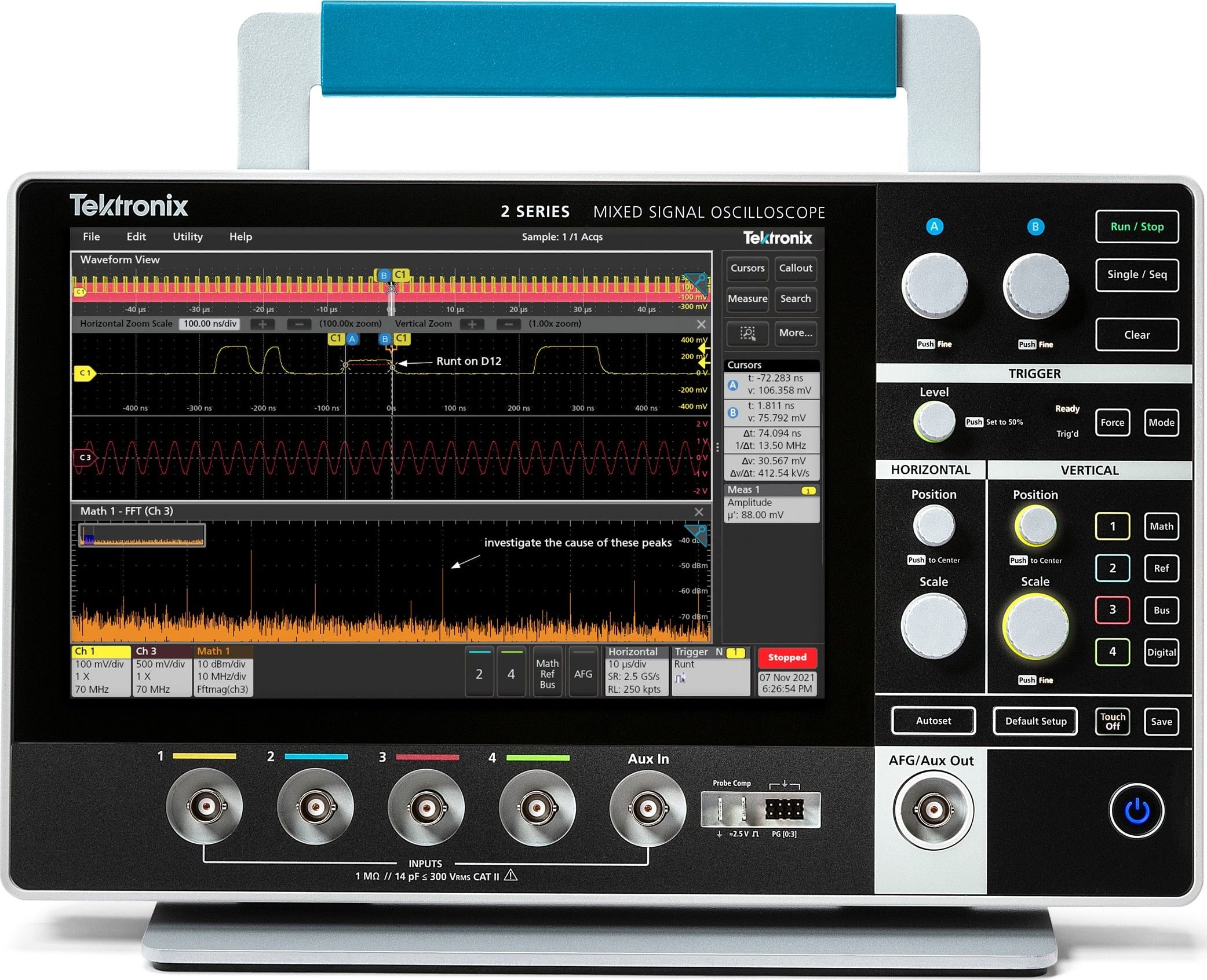

Tektronix MSO22 Mixed Signal Oscilloscope

The Tektronix MSO22 Mixed Signal Oscilloscope is an advanced device with 2 input analog channels, a 10.1-inch TFT color display, and more. The MSO22 has bandwidths of 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz and sample rates of 2.5 GS/s (half channels) or 1.25 GS/s (all channels). Easy-to-transport and user-friendly, the Tektronix MSO22 Mixed Signal Oscilloscope provides technicians with the ideal applications needed to complete precise measurements. This model is part of a series of mixed signal oscilloscopes.

Product Info Related Products

Model	MSO22
Analog input channels	2 inputs
Bandwidth	70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz
Sample rate	1.25 GS/s (all channel) 2.5 GS/s (half channels)
Record length	10 M points per channel
Digital channels	16
Standard trigger types	Edge, pulse width, runt, timeout, logic, setup & hold, rise / fall time, and parallel bus
Display	10.1-inch TFT color WXGA (1280 x 800) resolution Capacitive (multi-touch) touchscreen
Temperature	Operating: 0°C to +50°C (+32°F to 120°F) Operating battery: 0°C to 45°C (+32°F to 113°F) Non-operating: -20°C to +60°C (-4°F to 140°F)
Humidity	Operating: 5% to 90% relative humidity at temperatures up to +30°C 5% to 60% relative humidity at temperatures greater than +30°C and up to +50°C Non-operating: 5% to 90% relative humidity at temperatures up to +30°C 5% to 60% relative humidity at temperatures greater than +30°C and up to +60°C.
Dimensions (H x W x D)	210 x 344 x 78 mm (8.26 x 13.54 x 3.07 in)

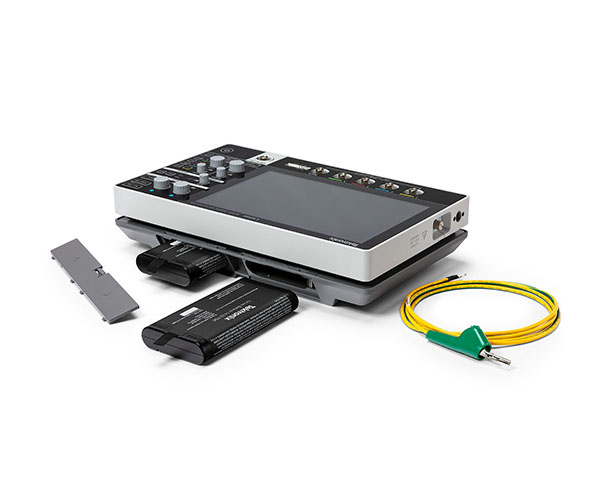

Weight	Instrument only: 1.8 kg (4 lb.) Instrument with battery pack: 3.2 kg (7 lb.) – one battery, 3.6 kg (8 lb.) – two batteries

Compact, versatile oscilloscope for daily debug

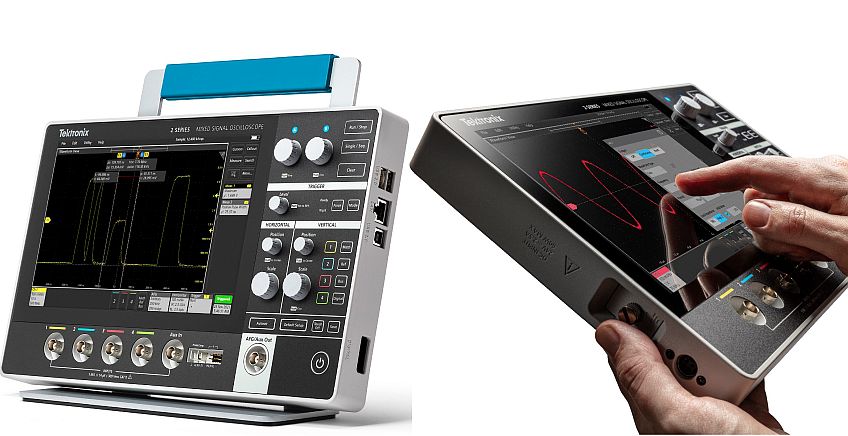

Intuitive touchscreen with simplified front panel
Easy-to-use interface with comprehensive analysis for fast insight
Waveform and screen-based cursors with user-selectable readout location
Basic and advanced waveform math including arbitrary equation editing
Basic FFT analysis with options to view magnitude or phase

Rack mount kit to mount the instrument in a rack for production
A bundle of carrying bag, protective rubber case, and kick stand making it easy to carry the instrument into the field
Hard travel case for shipping the instrument
The 100 mm x 100 mm standard VESA interface on the back of the instrument is compatible with a wide variety of accessories
