SCS Ionograph BT Series

The SCS Ionograph BT Series performs benchtop ionographs for quick and accurate testing of individual parts, complete assemblies or small devices. Special Coating Systems Ionograph ionic contamination test systems utilize the dynamic extraction method to measure resistivity change when a substrate is submerged in ultra-pure test solution. Special Coating Systems (SCS) Ionograph BT Series units enable users to match the test cell size with common substrate sizes to provide enhanced testing accuracy and speed. Models in the Special Coating Systems (SCS) Ionograph BT Series, operated by Windows-based PowerView software, are available with an all-in-one computer or tablet for maximum convenience and efficiency. The CE-certified systems feature easy-access door panels for the routine maintenance of consumable components and their full stainless-steel structure is durable for easy cleaning and corrosion resistance. For enhanced safety, electronic components are isolated in a separate, remote control module.

SCS Ionograph BT Series models are available in multiple test cell sizes, including: Small Parts (SP), Medium Parts (MP), Large Parts (LP).

Product Info

Characteristic	BT Series: Small Parts	BT Series: Medium Parts	BT Series: Large Parts
Test Cell Size (W x H x D)	6 x 6 x 1.125" 15.2 x 15.2 x 2.9 cm	14 x 12 x 2.5" 35.6 x 30.5 x 6.4 cm	14 x 20 x 2.5" 35.6 x 50.8 x 6.4 cm
Estimated Solution Capacity	0.4 gal / 1.5 L	2.6 gal / 10 L	4 gal / 15 L
Dimension (W x H x D)	11 x 20.75 x 15" 27.9 x 52.7 x 38.1 cm	15.25 x 19.75 x 15" 38.7 x 50.2 x 38.1 cm	15.25 x 27 x 16.25" 38.7 x 68.6 x 41.3 cm
Weight	46 lb / 20.9 kg	64 lb / 29 kg	78 lb / 35.4 kg
Power Requirements	120 VAC, 60Hz, 1 A 230 VAC, 50Hz, 0.5 A	120 VAC, 60Hz, 1 A 230 VAC, 50Hz, 0.5 A	120 VAC, 60Hz, 1 A 230 VAC, 50Hz, 0.5 A

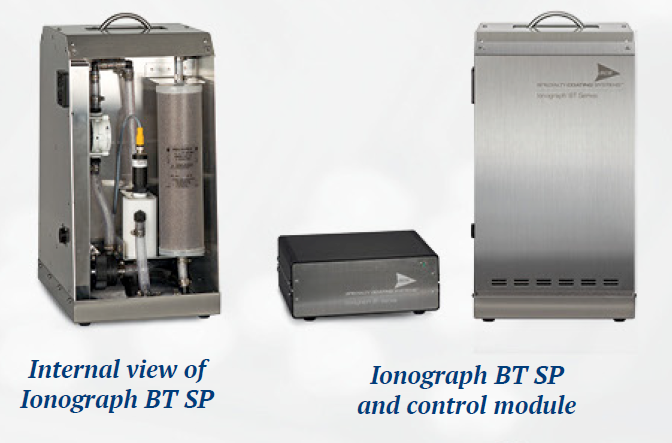

SCS Ionograph BT Series: SP (Small Parts)

6 x 6-inch test cell can detect very small amounts of contamination with accurate precision
Comes complete with custom basket for sample holding
Ideal for testing individual components or extremely small devices
Available with all-in-one computer or tablet

SCS Ionograph BT Series: MP (Medium Parts)

12 x 14-inch test cell for more standard size samples
Ideal starter unit for testing a variety of products ranging from parts to complete PC assemblies
Available with all-in-one computer or tablet

SCS Ionograph BT Series: LP (Large Parts)

14 x 20-inch test cell for larger components
Allows for testing of oversized samples
Available with all-in-one computer or tablet

ANSI/J-STD-001
IPC-TM-650 (ROSE)
MIL-STD-2000A
MIL-P-28809A

SKU: SPEC-BT-MP

SCS Ionograph BT Series
