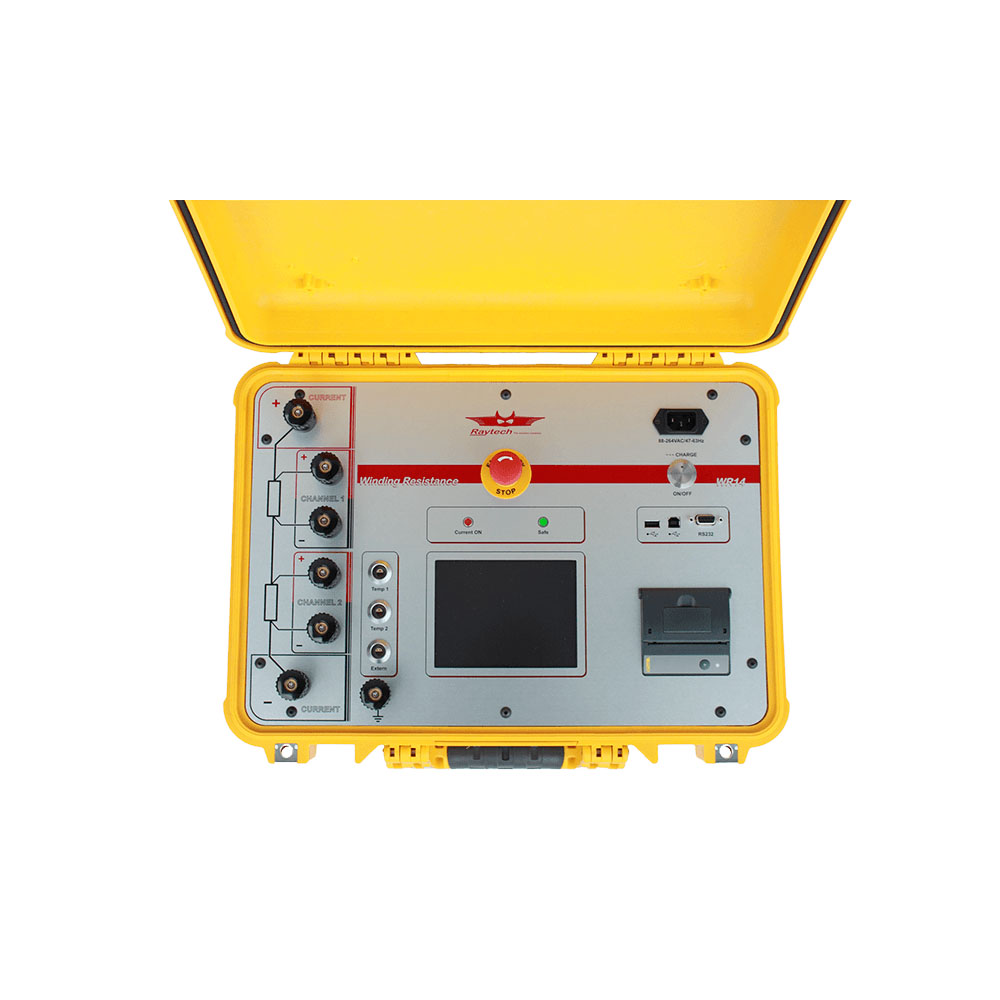

Raytech WR14 Winding Resistance Meter
The Raytech WR14 Winding Resistance Meter is a battery-operated, 2-channel device with a maximum test current of 15 A. With a resistance range of 0 μΩ to 100 kΩ, an output voltage of 0 to 30 V DC, and more, the Raytech WR14 is the ideal model for a variety of testing requirements. The Raytech WR14 has a 5.7” color LCD display and user-friendly applications.
| Input Line Power | 88 - 64 VAC 47 - 63 Hz Auto ranging |
| Output Voltage | 0 - 30 VDC |
| Test Current | 25 mA - 15 A User-selectable |
| Inductance Range | 0 - 1,500 Henry |
| Operating Temperature | -10° to 60°C |
| Storage Temperature | -20° to 70°C |
| Resistance Range | 0.00 μΩ to 100 kΩ |
| Panel Display | 5.7” Color LCD Backlight and touch screen |
| Memory Storage | Stores up to 10,000 complete test results |
| Battery Operation | 200 single measurements at 15 A |
| Dimensions (L x W x H) | 470 x 357 x 176 mm 18.5 x 14.1 x 6.9 in |
| Weight | 9.6 kg (21.1 lb.) |
- Pure, filtered DC power source for the highest accuracy readings
- Charges inductive loads up to 1,500 Henry
- Battery operated
- 2 independent measuring channels
- Automatic measurements of resistance from 0.00 µΩ - 100 kΩ
- Microprocessor-based system with internal storage for over 10,000 test results
- Temperature channels with automatic resistance correction
- Panel-mounted Emergency Stop Switch
- Fast discharge with discharge indicator
- Simple to operate color LCD with backlight
- Standard USB 2.0 & RS-232 (serial) interface
