Q-Lab Q-SUN Xe-1 Xenon Arc Test Chamber

The Q-Lab Q-SUN Xe-1 Xenon Arc Test Chamber is a tabletop chamber that simulates the effects of years of rain, or sunlight, over a few short weeks. The Q-SUN Xe-1 only needs a single xenon arc lamp for lightfastness, colorfastness, and photostability purposes. Not just reliable, this arc test chamber features a simple installation and a flat specimen tray that makes it easy to test a variety of objects, regardless of shape or size.

Q-Lab Corporation is not associated with Advanced Test Equipment Corporation. ATEC provides rentals of the Q-Lab Xenon Arc Test Chambers.

Product Info Available Add-Ons Related Products

Black Panel Temperature (°C)
	BP	IBP
Light Cycle	45-90	50-100
Light Cycle with IR Filter	40-70	45-80
Dark Cycle	25-50	25-50

Chamber Air Temperature (°C)
Light Cycle (any filter)	35-55
Dark Cycle	30-45

Specimen Area (d x w)	25 cm x 46 cm (9.9 in x 18 in)
Specimen Capacity (qty @ size)	17 @ 51 x 102mm (2 x 4 in)
Total Specimen Weight	14 kg (30 lb) max
Inlet Water Pressure and Purity	H/HC Models: 0.7-6.2 bar (10-90 psi); > 200 kΩ∙cm; < 5 μS/cm; < 2.5 ppm TDS S/SC/W/HS/HDS/HBS/HSC Models: 2.1-6.2 bar (30-90 psi); > 5 MΩ∙cm; < 0.2 μS /cm; < 0.1 ppm TDS; < 0.1 ppm colloidal silica
Water Consumed with Spray	0.12 L/min
External Dimensions (w x h x d)	78 x 52 x 65 cm (31 x 21 x 26 in)
Weight	50 kg (110 lb)
Electrical Requirements (208V, 230V)	1-Ф @ 12A (11A)

Full spectrum xenon lamps
A variety of optical filters
Temperature monitoring and control

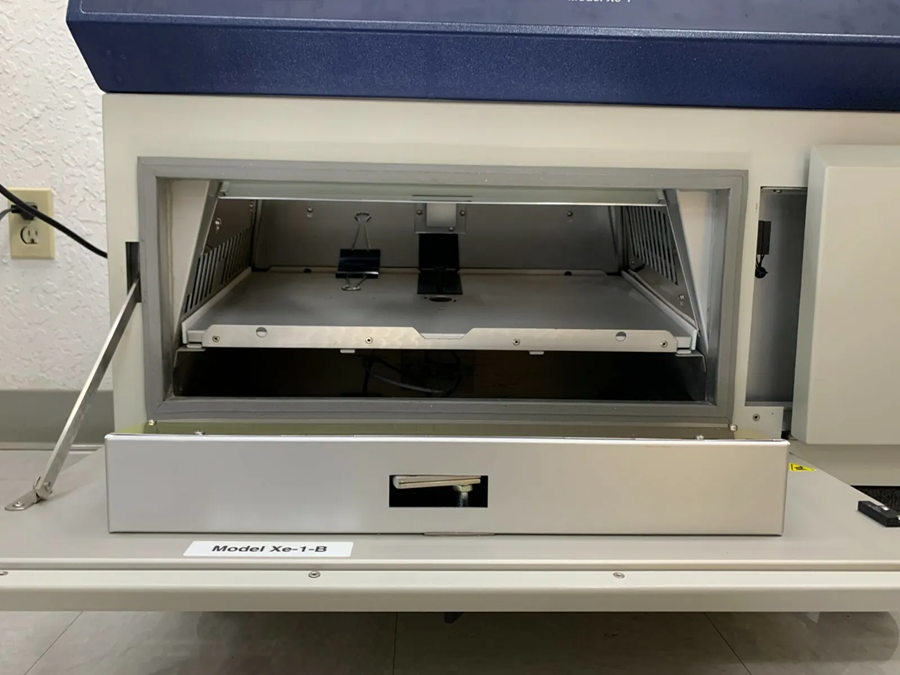

A flat specimen mounting tray to accommodate various shapes and sizes
SOLAR EYE irradiance control system
