PMM DR-01 Double-Ridged Horn Antenna | 6 - 18 GHz

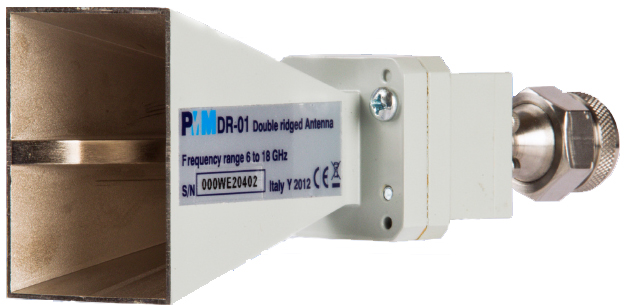

The PMM DR-01 Double-Ridged Horn Antenna is a lightweight broadband antenna designed for radiated emissions and immunity applications. The PMM DR-01's N connector is mounted along the antenna's axis, thus allowing for direct connection, without cable or adapters, to the PMM 9180 18 GHz EMI Receiver which features full CISPR 16-1-1 compliance and an internal preamplifier.
The group antenna-receiver can be easily installed on a tripod or mast and connected by a fiber optic cable to the PMM 9010F, thus increasing sensitivity and reducing overall uncertainty. PMM DR-01 Double-Ridged Horn Antenna can be used in conjunction with any Receiver or Spectrum Analyzer.
| Frequency range | 6 - 18 GHz |
| Impedance | 50 Ω nominal |
| Gain | 9 - 16 dBi |
| Antenna factor | 36 - 41 dB/m |
| VSWR | < 2 (1,8 typ.) |
| Beam width 3 dB @ 12 GHz |
E-plane 33° H-plane 38° |
| Max input power | 150 W |
| Connector | N-male |
| Dimensions LxHxD | 55 x 44 x 137 mm |
| Weight | 250 g |
- 6 to 18 GHz frequency range
- Excellent Antenna Factor and VSWR
- Tripod adapter for easy vertical-horizontal polarization change
- Individual calibration
- Robust, rustproof construction
- Lightweight
