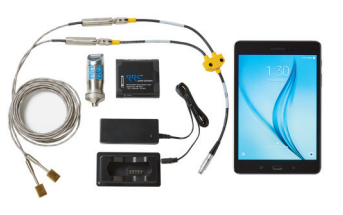

GE Panametrics TransPort PT900 Ultrasonic Flow Meter

The GE Panametrics TransPort PT900 Ultrasonic Flow Meter is a single- or dual-channel ultrasonic flow system configured to your specifications and portable for temporary or spot-flow measurement. GE Panametrics TransPort PT900 Ultrasonic Flow Meters maintain the same high performance as the PT878, but feature a total redesign of the flow transmitter, clamping fixture and user interface in order to improve the user experience. The GE Panametrics TransPort PT900 is portable, simple to use, accurate, and fast. It's easy for you to move it from location to location and task to task, and since it clamps on to the pipe exterior, there's no need to cut into the pipe or stop the process while taking measurements. It is suitable for most pipe sizes and materials, both lined and unlined, and virtually every industry that requires temporary or spot flow rate measurement.

Product Info Product Options

Fluid Types	Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles.
Flaw Measurement	Patented correlation transit-time mode
Pipe Sizes	Standard: 0.5 to 24 in. (15 to 600 mm) Optional: Up to 300 in. (7500 mm) available upon request
Pipe Wall Thickness	Up to 3 in. (76.2 mm)
Pipe Material	All metals and most plastics
Accuracy	±1% of reading (2 in./50 mm or greater pipe sizes) ±2% of reading (0.5 in./15 mm to <2 in./50 mm pipe sizes)
Repeatability	±0.2% of reading
Range	0.1 to 40 ft/s (0.03 to 12.19 m/s)
Response Time	Up to 2 Hz
Measurement Parameters	Velocity, volume, mass, energy, total flow
Channels	1 or 2 channels

A wide selection of transducers for most applications
Velocity, volume, mass, totalizer & energy flow capable
Fast-responding transmitter with 8GB data storage
Requires Android tablet (version 4.4 or newer)
Easy programming with bright touchscreen
Multi-language user interface
Accuracy assumes a fully developed symmetrical flow
- ±1% of reading (sizes 2in or greater)
- ±2% of reading (sizes 0.5 to <2in)
±0.2% of reading repeatability
Up to 2Hz response time
