Narda SMARTS AMC

The Narda SMARTS AMC is an EMF monitoring solution that is designed for continuous RF radiation detection in both indoor and outdoor environments. It features interchangeable probes covering frequencies up to 60 GHz, compliant with ICNIRP, FCC, and supports multiple data transmission options. Equipped with integrated sensors for GPS, temperature, humidity, and barometric pressure, it ensures accurate and reliable measurements compliant to ITU-T Rec. K.145.

Product Info

Optical fiber connection	Serial Optical Interface 115200 Baud RP02 connector up to 40 m (USB-OC)
Sampling time	Automatic from 0.3 s
GPS module	GNSS module Satellite System GPS + QZSS + GLONASS + GALILEO
Max data storage capability	Up to 250000 points
Dimensions	Ǿ 86mm, Heigh 306mm Wall distance 93mm with support Bracket

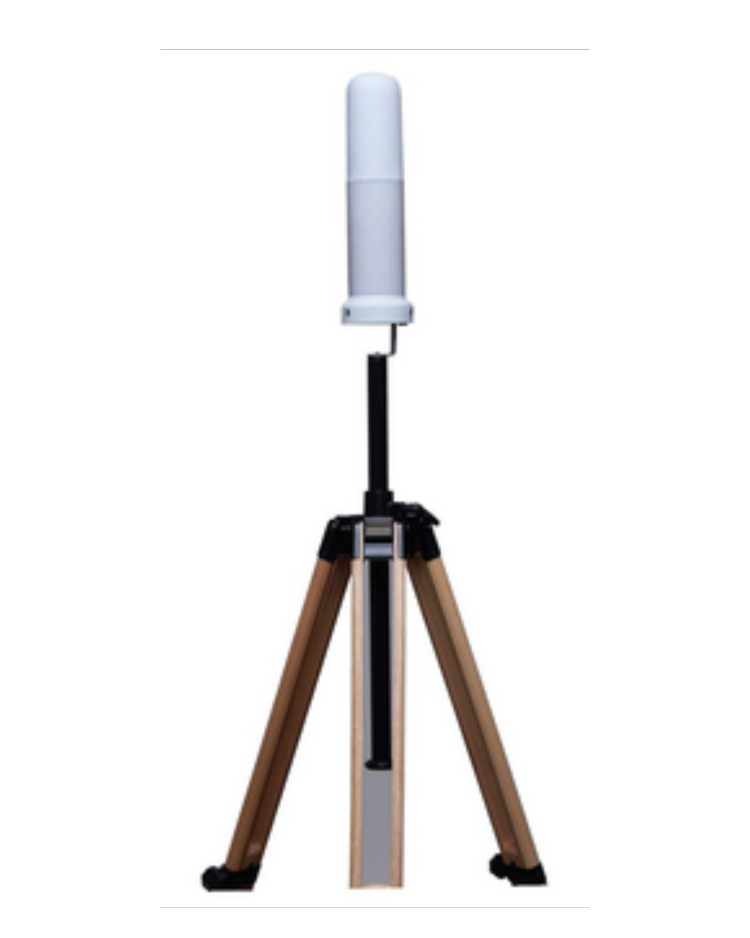

Quick and easy installation on wall/ceiling or standalone with tripod

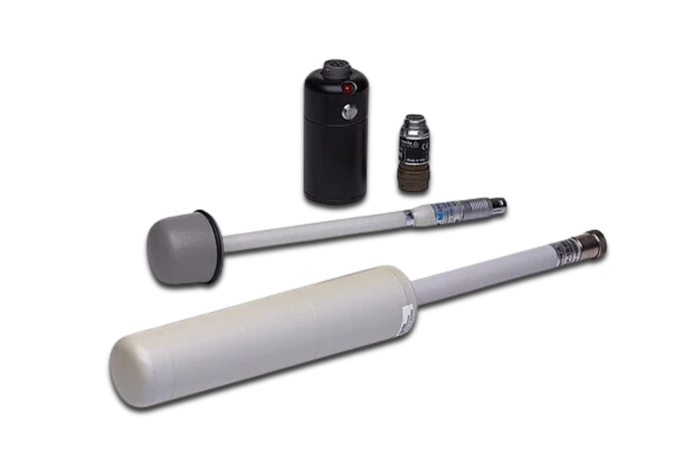

Shaped probes, up to 60 GHz, compliant with various safety standards for both occupational and public limits
Standalone or network capabilities with logging and warning functions
Multiple data transmission interfaces: USB-C, optical fiber, Wi-Fi, Bluetooth, and Ethernet (no SIM card required)
Integrated sensors for GPS, barometer, temperature, air humidity, accelerometer, and compass
Excellent shielding properties, ensuring accurate measurements even with high field strength
Environmental protection options: IP42 for indoor use (lab, school, hospital) or IP65 for harsh environments (subway, street lamps, etc.).
