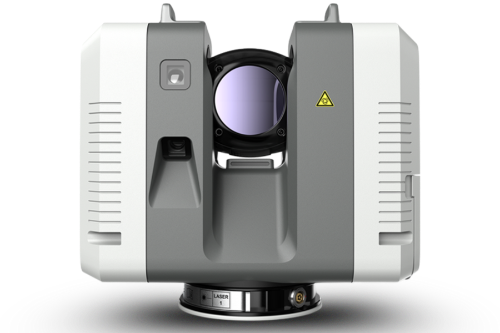

Leica RTC360 3D Laser Scanner

Leica RTC360 LT Option Available

The Leica RTC360 is a high-speed 3D laser scanner that captures up to 2 million points per second, completing full-dome scans with HDR imagery in under 2 minutes. It features real-time registration using the Visual Inertial System (VIS), automatic removal of moving objects, and a 36 MP HDR imaging system.

The RTC360 LT shares the same hardware platform and measurement accuracy but operates at a reduced scan speed of 1 million points per second and does not include VIS-based real-time registration. Both models support a scanning range of 0.5 – 130 m, offer 1.9 mm 3D point accuracy at 10 m, and are compatible with Leica Cyclone FIELD 360 software.

Product Info Product Options Related Products

Model	RTC360	RTC360 LT
Scan Speed	Up to 2,000,000 pts/sec	Up to 1,000,000 pts/sec
Real-time Registration	Yes (VIS Technology)	No
3D Point Accuracy @ 10 m	1.9 mm
Range	0.5 – 130 m
Camera System	36 MP (3-camera system)
HDR Imaging	Automatic, 5 brackets
Full Scan + Image Time	< 2 minutes
Angular Accuracy	18″
Tilt Accuracy	IMU-based, 18″
Connectivity	Wi-Fi (802.11 b/g/n), USB
Operating Temperature	-5°C - +40°C
Weight	5.35 kg
Dimensions	120 x 240 x 230 mm
Ingress Protection (IP Rating)	IP54

3D laser scanning up to 2 million pts/sec (RTC360) and 1 million pts/sec (RTC360 LT)
Scanning range from 0.5 – 130 meters
VIS technology (RTC360 only) enables real-time registration and setup tracking
Integrated 36 MP HDR imaging system with 432 MPx raw data output
< 2-minute full dome scan and spherical image capture
1.9 mm 3D point accuracy at 10 meters
Automatic removal of moving objects with double scan mode
Touchscreen control and Cyclone FIELD 360 app compatibility
IP54-rated for dust and water resistance
Compact and lightweight design for easy field portability
Internal rechargeable batteries with up to 4 hours of runtime
Compatible with Leica Cyclone REGISTER 360 for streamlined data processing
