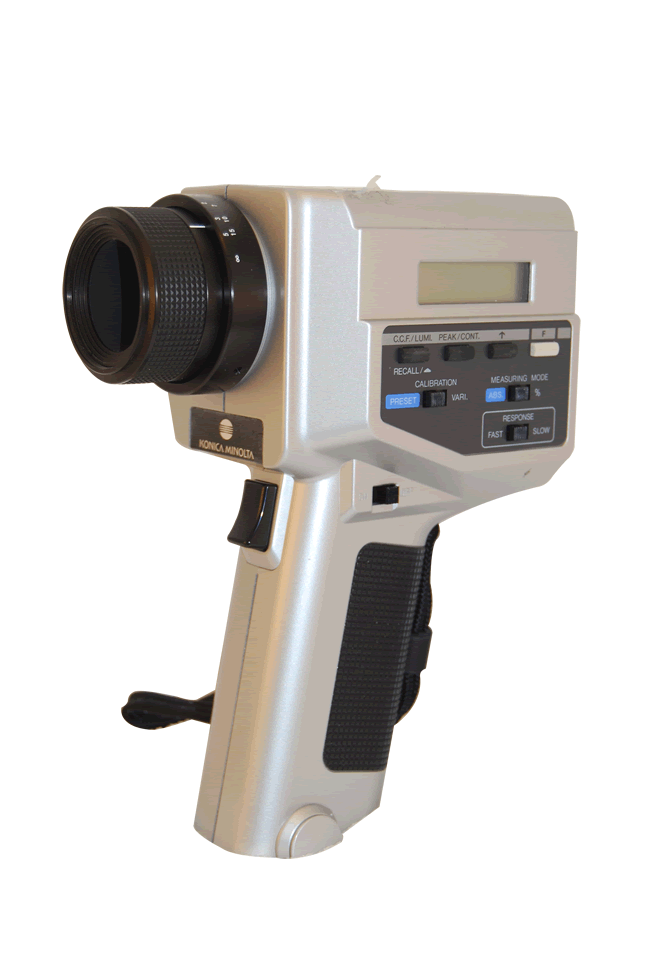

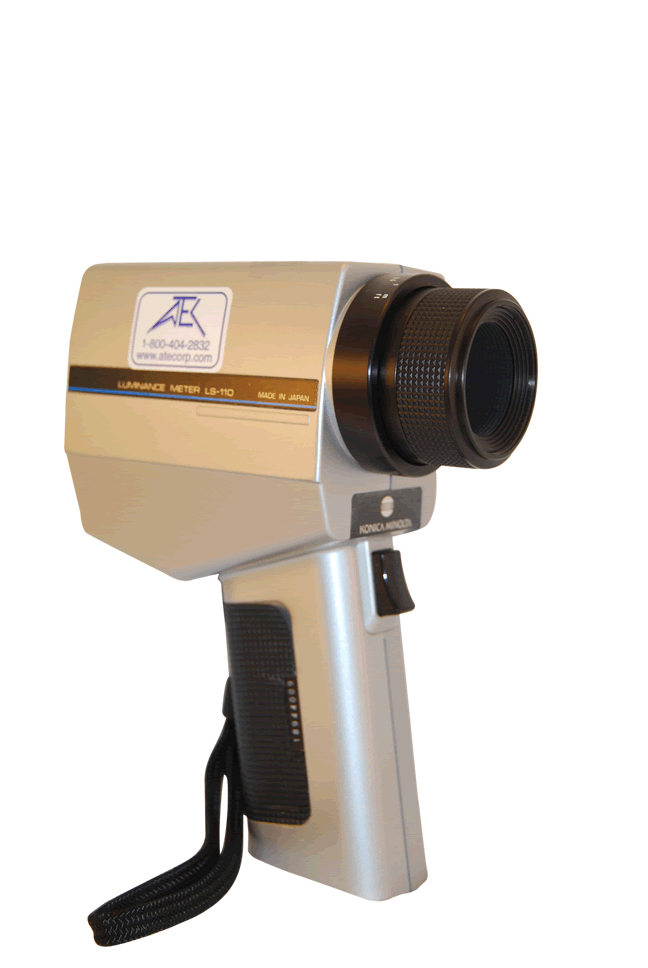

Konica Minolta LS-110 Luminance Meter

The spot LS-110 luminance meter, categorized in the upper range of the DIN quality class B, is among the best hand meters on the market. The SLR (single lens reflex) optical system allows precise targeting and ensures that the viewfinder shows the exact area to be measured, even at very short distances. This makes even precise focusing very easy. In addition to the measurement field and the measurement environment, the viewfinder also shows the measured luminance value. The pistol grip makes handling of the unit very secure. We have given special attention to minimize flare and to give precise V(λ) correlation (CIE relative photopic luminosity curve). With the help of a close-up lens, areas as small as 0.4mm diameter can be measured.

Product Info

SLR (single-lens-reflex) optical system - The LS-110 single-lens-reflex design ensures that there will be no deviation between the actual measurement area and the area indicated in the viewfinder. Eliminating the effect of illumination outside the measurement range, this flareless optical system ensures accurate measurement of only the target area
Spot measurement for small target areas - With acceptance angles of 1° and 1/3° respectively, LS-110 is ideal for measuring the luminance of small specimens. Furthermore, a close-up lens (sold separately) can be used to achieve a 0.4-mm measurement diameter
User calibration and color-correction functions for wide ranging support - With a user calibration function allowing recalibration to any standard luminance that you select and a color-correction input function for correction of indication differences for specific light sources, multiple luminance meters can be used without error for extremely detailed luminance control
User calibration and color-correction functions for wide ranging support - With a user calibration function allowing recalibration to any standard luminance that you select and a color-correction input function for correction of indication differences for specific light sources, multiple luminance meters can be used without error for extremely detailed luminance control
Luminance ratio and peak value measurement - Based on the particular application, measurement values can be set to instantaneous luminance, peak luminance, and luminance ratio
Two-way RS-232C communication - Featuring an RS-232C interface as standard, this luminance meter can connect with a PC to send measurement data and receive control signals
Lightweight, compact, and powered by a single 9V battery - (Power can also be supplied by the DP-10 Data Printer.)

SKU: MINO-LS-110
