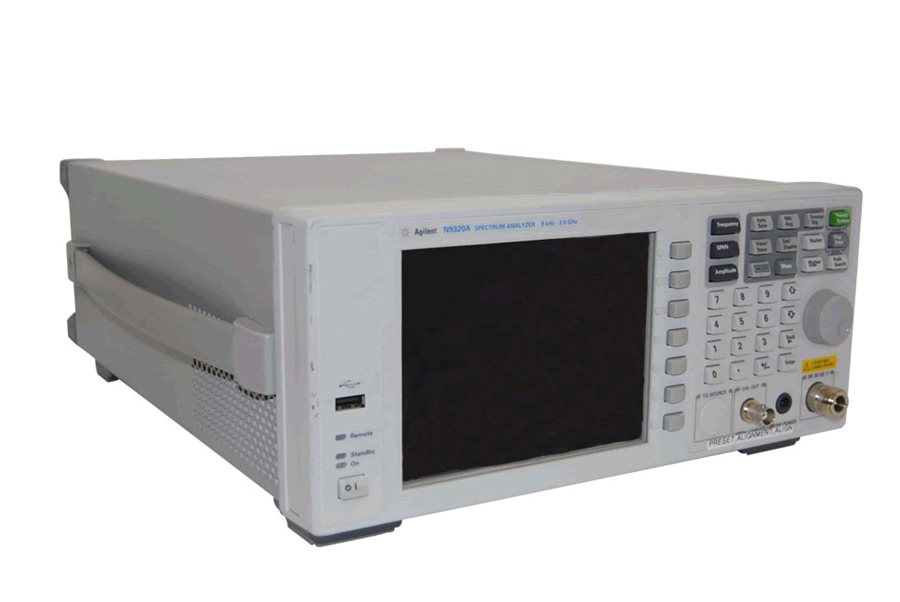

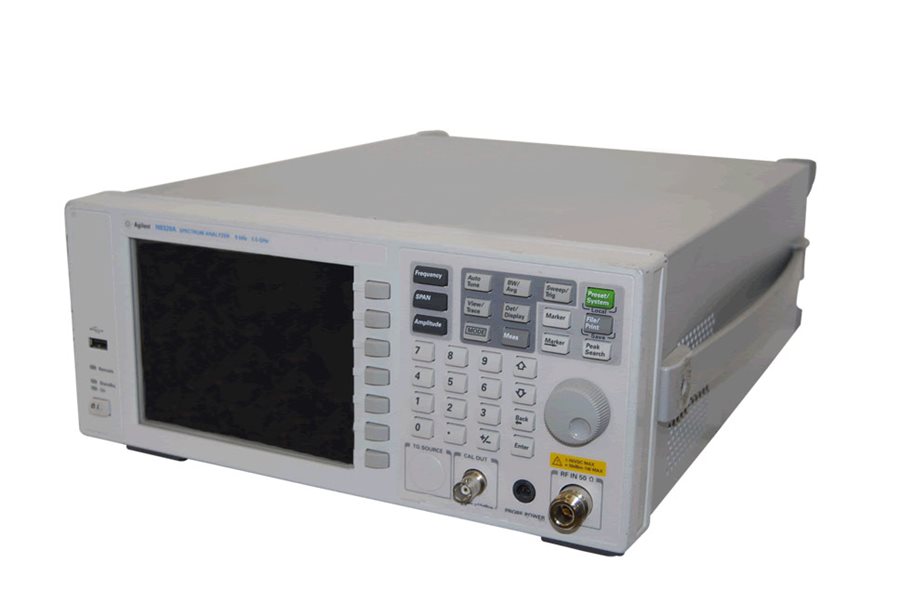

Keysight N9320A RF Spectrum Analyzer | 9 kHz – 3 GHz

Explore top-tier testing precision with the Keysight N9320A Spectrum Analyzer. The device has a frequency range of 9 kHz to 3 GHz and features a dynamic range of -152 dBm DANL, this analyzer is adept for RF component testing, EMI pre-compliance checks, and wireless service monitoring. Benefit from its user-friendly interface, versatile connectivity options, and the assurance of calibrated, ready-to-use equipment. The Keysight N9320A RF Spectrum Analyzer was previously manufactured as the Agilent N9320A RF Spectrum Analyzer.

Product Info Related Products

Frequency Range	AC Coupled: 9 kHz - 3 GHz Preamp on: 100 khz - 3 GHz
1 dB Gain Compression	Total power at input mixer: > 0 dBm Total power at the preamp: > –20 dBm
Amplitude Measurement Range	10 MHz - 3 GHz: Displayed average noise level (DANL) to +30 dBm 1 MHz - 10 MHz: DANL up to 23 dBm 100 kHz - 1 MHz: DANL up to 20 dBm
2nd Harmonic Distortion	10 MHz ≤ f ≤ 500 MHz: +35 dBm 500 MHz ≤ f ≤ 3 GHz: +43 dBm
VSWR	<1.5 : 1
Weight	20 lbs
Dimensions	5.2 in x 12.6 in x 15.7 in

Fast measurement speed - best for mass production manufacturing tests, service and repair tasks
Light weight and portable - good for field installation and maintenance tasks
Full function spectrum analyzer with an affordable price - fits your tight budget and helps you reduce costs
Auto Tune — for auto signal search
9.2 ms non-zero span sweep time
One-button power measurement suite (Channel power, ACPR, SEM, OBW, TOI)
Intuitive GUI offering 11 languages
Standard USB connectivity for test automation and memory stick support
SCPI command set for remote control
