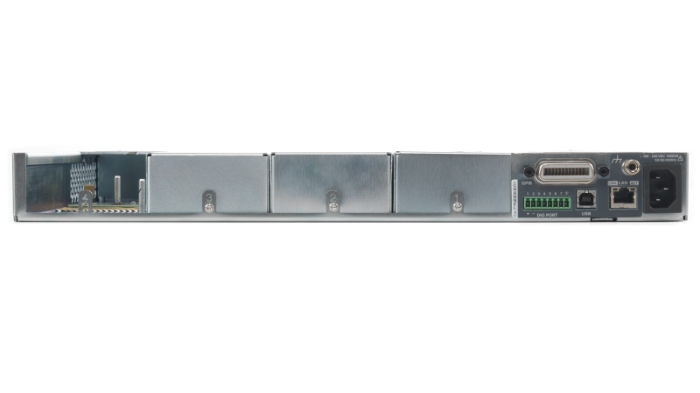

Keysight N6700C Low-Power Modular Power System Mainframe

400W

The Keysight N6700C Low-Power Modular Power System Mainframe helps test system designers mix and match different DC power modules in order to create 1- to 4-channel DC power systems or electronic load systems. These devices have built in features for measuring voltage and current, as well as for protection. They can be controlled from any web browser and operate on a universal AC input from 100-240VAC, 50/60/400Hz.

Product Info Related Products

Input Ratings:	~100VAC - 240VAC; 50/60/400Hz
Power consumption:	1000VA
Power factor:	0.99 @ nominal input and rated power
Weight:	28lbs (12.73kg)
Dimensions: (Height x Width x Depth):	44.45mm x 432.5mm x 585.6mm (1.75in. x 17.03in. x 23.06in.)

Ideal for ATE systems in R&D, design validation, and manufacturing
Small size: up to four outputs in 1U of rack space
Flexible, modular system: Lets you mix and match power levels and performance levels to optimize your investment
Performance modules for critical test requirements
Value modules fo basic DC power requirements
Electronic load modules for power supply testing
Fast command processing time and output speed to improve throughput
Connect via GPIB, LAN, or USB
Fully compliant to LXI Class C specification

SKU: KEYS-N6700C
