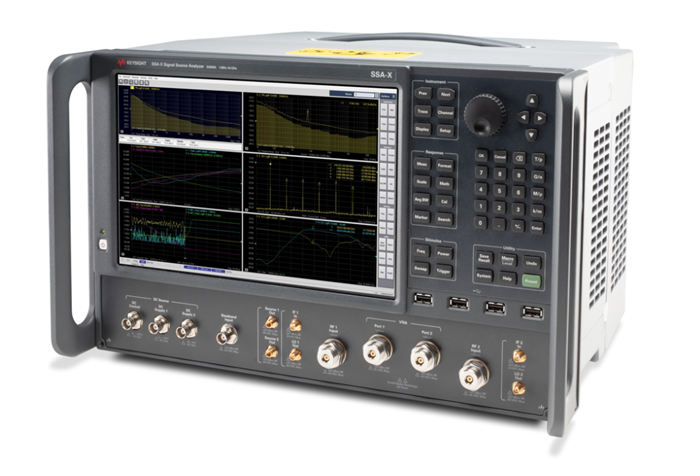

Keysight E5058A SSA-X Signal Source Analyzer | 1 MHz – 54 GHz

1 MHz – 54 GHz

The Keysight E5058A SSA-X Signal Source Analyzer is designed to measure phase noise, frequency stability, and AM noise across a frequency range of 1 MHz to 54 GHz. It offers exceptional sensitivity and accuracy through cross-correlation methods and path delay compensation, ensuring precise results in RF singal analysi. The analyzer integrates vector network analysis and voltage-controlled oscillator (VCO) analysis, making it ideal for applications in telecommunications, satellite communication, and defense. With an intuitive multi-window display, the E5058A simplifies complex measurements, delivering comprehensive data for high-frequency signal characterization.

Product Info Related Products

RF frequency range	1 MHz - 54 GHz
Minimum offset frequency	1 mHz
Frequency resolution	0.1 mV
Output power range	-80 dBm - 20 dBm
Maximum output current	20 mA (typ.)
RF Connector	1.85mm - Male, 1.85mm - Female

Ultra-low noise sensitivity and cross-correlation method
Noise measurement up to 54 GHz
Evaluate your DUTs from additional and different aspects using the two-port vector network analysis (VNA) option.
Analyze voltage-controlled oscillators (VCOs) with more flexibility by using clean DC voltage (two channels) and tuning voltage outputs.
