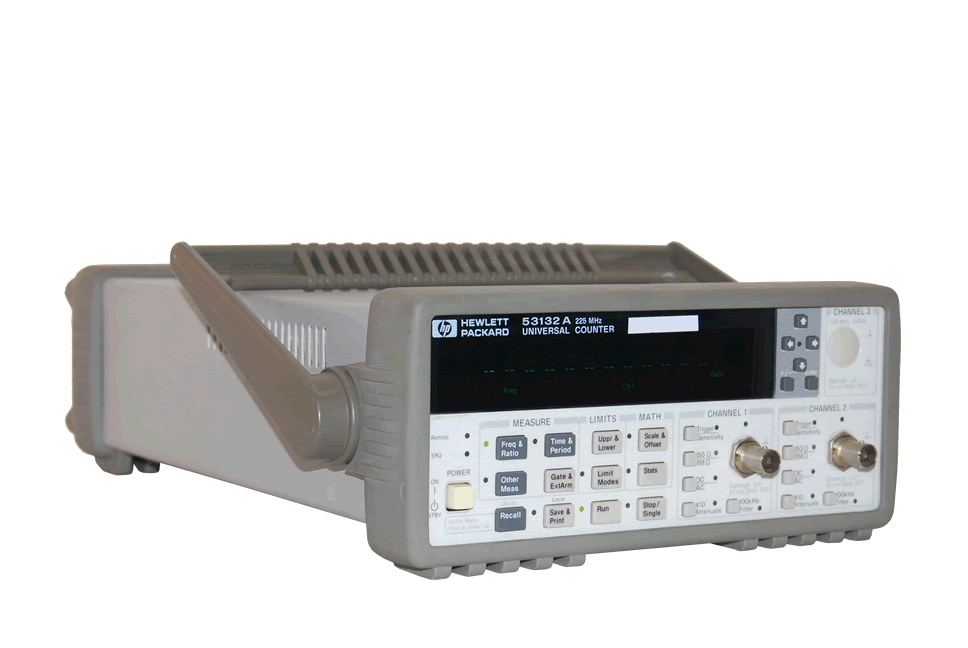

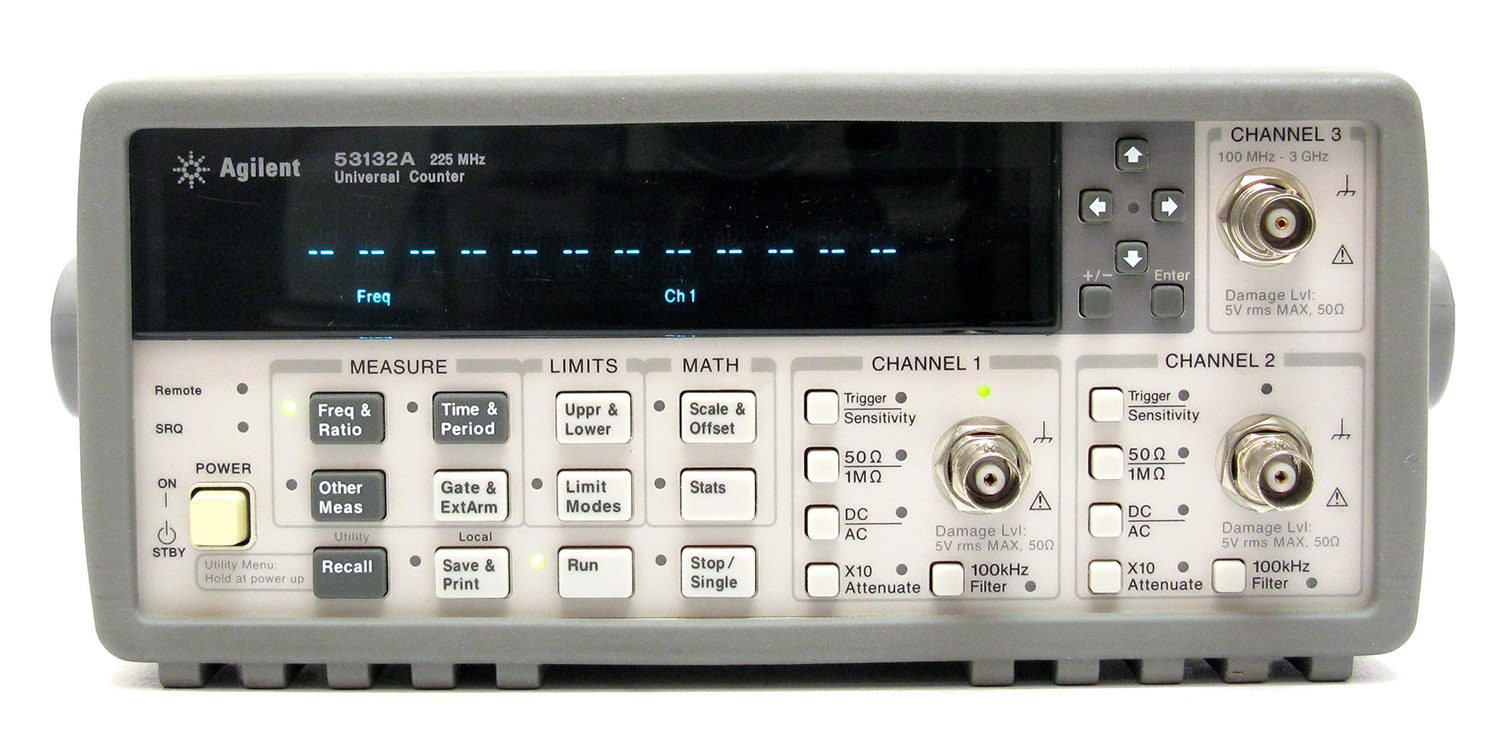

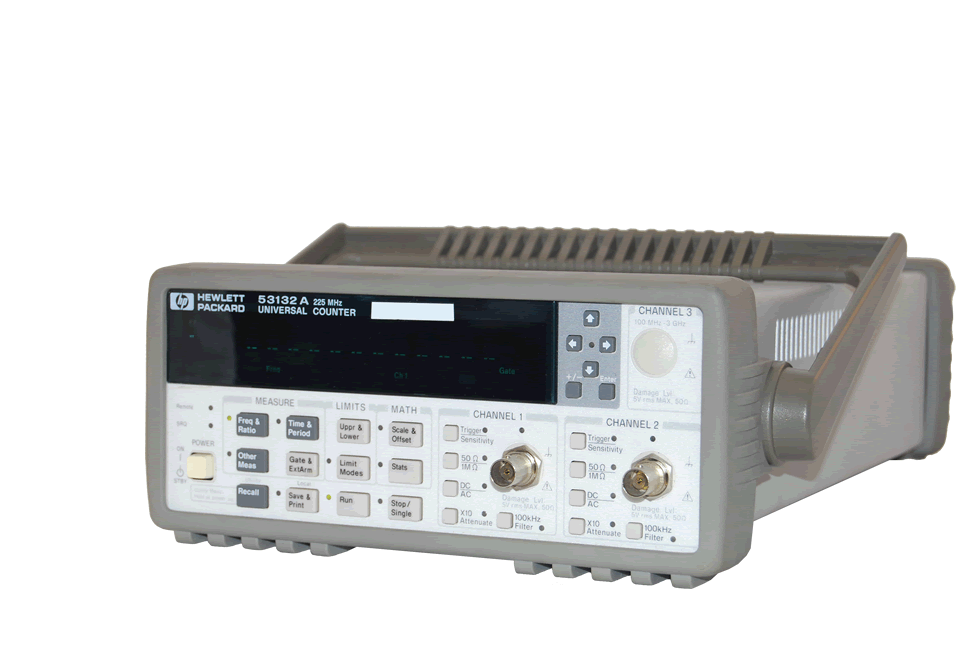

Keysight 53132A Universal Frequency Counter

The Keysight 53132A is a versatile universal frequency counter, essential for precision frequency and time measurements across sectors like telecommunications, R&D, and electronics manufacturing. It covers a frequency range from 0.001 Hz to 225 MHz, expandable to 20 GHz with optional modules. Known for its accuracy, it provides up to 12 digits per second resolution. The device features two standard measurement channels, with an option for a third, supporting a wide array of measurement types at speeds up to 200 measurements per second. It also offers high sensitivity for low-level signal detection. With GPIB and RS-232 interfaces for easy integration into automated systems, plus a user-friendly interface, the 53132A combines performance, precision, and ease of use, making it a critical tool for professionals needing reliable measurement solutions.

Product Info

Frequency Range	dc to 225 MHz
Frequency Resolution	12 digits/s
Dynamic Range	20 mV to ±5 Vac (dc to 100 MHz) 30 mV to ±5 Vac (100 to 200 MHz) 40 mV to ±5 Vac (200 to 225 MHz)
Input Impedance	50 ohm or 1 megohm, ac or dc
Time Interval	150 ps
Standard Time Base Accuracy	10 MHz, <3 X 10-7th/month (<1.5 X 10-8th/month with option 010), (<3 X 10-9th/month with option 012)
Weight/Dimensions (HxWxD)	7 lb 89 mm(3.86 in) x 213 mm(8.35 in) x 348 mm(10.87 in)

Universal Frequency Counter, 12 digits/s
Two 225 MHz input channels, plus optional third channel up to 12.4 GHz
12 digits per second, 150 ps time interval resolution
GPIB Standard

Manuals
Power Cord
Opt 1CP: Rackmount Kit w/ Handles
Opt 1CM: Rackmount Kit 34970A
Power Cable

Keysight 53132A Universal Frequency Counter

Related Products

Keysight 53150A Continuous Wave Microwave Counter

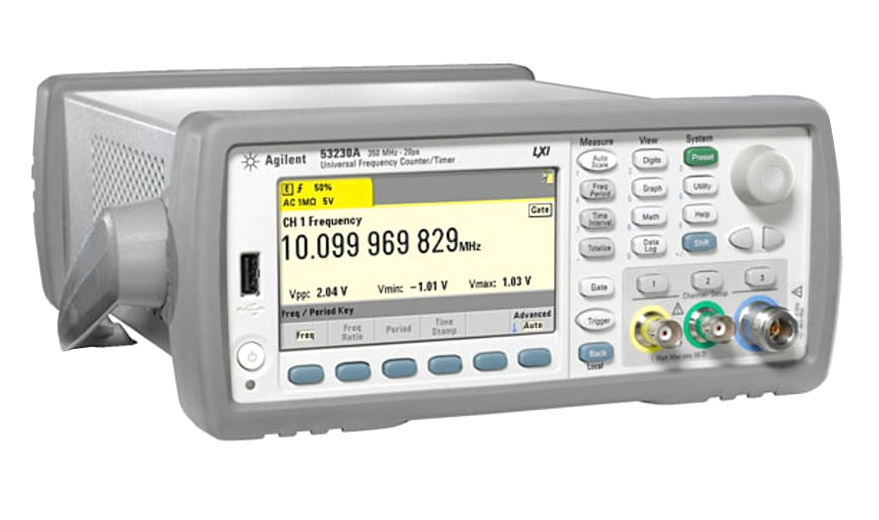

Keysight 53230A 350 MHz Universal Frequency Counter/Timer

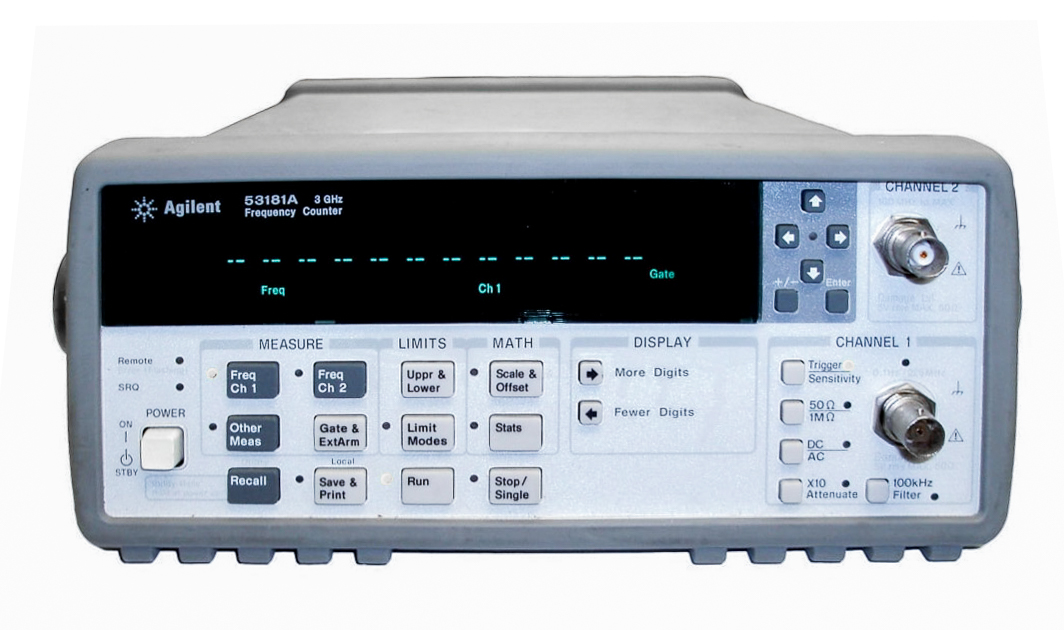

Keysight 53181A RF Frequency Counter, 10 digit/sec.
