Keyence LS-9000M Optical Micrometer Series

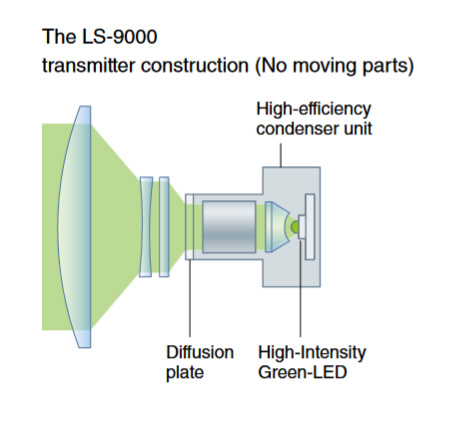

Keyence LS-9000M series optical micrometers are high-precision measuring devices that perform dimensional analysis with a Green LED light and three CMOS receptors. Green-LED technology generates a high-intensity, long-lasting beam of light that is condensed by an efficiently-focusing collimated lens. With their tilt correction feature, Keyence LS-9000M micrometers can be placed in any position and still provide accurate measurements. The system’s 8-point software calibration/scaling allows for up to 10 millionths precision (.254μm). No moving parts are included in the LS-9000M’s solid state design, meaning no maintenance for worn out motors and polygonal mirrors.

The Keyence LS-9000M Series consists of the following models:

Model	Accuracy	Measurement Range
LS-9030M	±2μm (0.000079")	0.08mm - 30mm (0.003" - 1.18")
LS-9006M	±0.5μm (0.000020")	0.01mm - 6mm (0.0004" - 0.24")
LS-9120M	±8μm (0.000315")	0.8mm - 120mm (0.03" - 4.72")

Product Info

LS-9030M
Measurement range	0.08mm to 30mm (0.003" - 1.18")
Smallest detectable object	0.08mm (0.003")
Measurement accuracy	±2μm (±0.000079")
Repeatability	±0.1μm (±0.000004")
LS-9006M
Measurement range	0.01mm to 6mm (0.0004" - 0.24")
Smallest detectable object	0.01mm (0.0004")
Measurement accuracy	±0.5μm (0.000020")
Repeatability	±0.03μm (0.0000012")
LS-9120M
Measurement range	0.8mm to 120mm (0.03" - 4.72")
Smallest detectable object	0.8mm (0.03")
Measurement accuracy	±8μm (0.000315")
Repeatability	±0.3μm (0.000012")

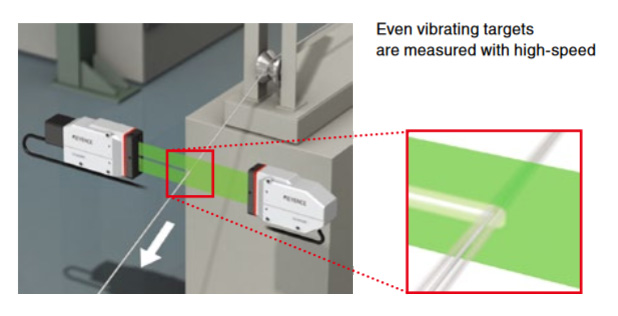

16 kHz sampling rate
3-CMOS + Green LED system
16-channel simultaneous measurement
Monitor camera included

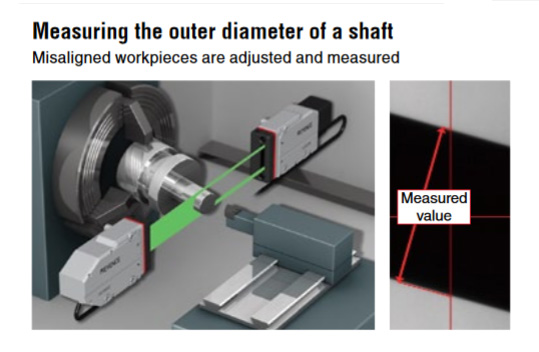

Tilt correction
No moving parts - reduced maintenance time
IP67 construction
Die-cast housing + designed for optical protection
Simple PC analysis with high-capacity data storage
