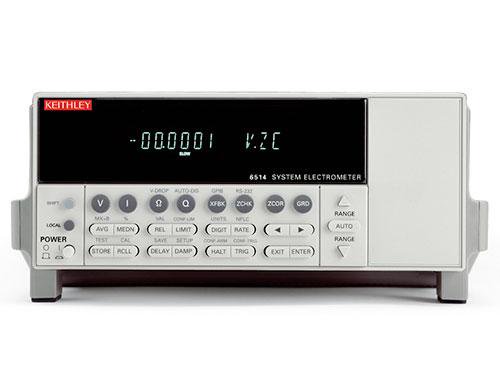

Keithley 6514 Programmable Electrometer
The Keithley 6514 is a programmable electrometer that provides charge measurements from 10fC to 20µC and a reading rate of up to 1200 readings per second. Model 6514 was built for applications that demand fast and precise measurements of low currents, voltages from high resistance sources and charges. Keithley model 6514 can be manually operated using its front panel controls or externally controlled with the unit's built-in IEEE-488, RS-4232 and digital I/O interfaces that make it simple to configure fully automated, high speed systems for low-level testing. The 6514's feedback ammeter design minimizes voltage offsets in the input circuitry, which can affect current measurement accuracy.
| Volts | |
|---|---|
| NMRR | 60dB on 2V, 20V, >55dB on 200V, at 50Hz or 60Hz ±0.1%. |
| CMRR | >120dB at DC, 50Hz or 60Hz. |
| Input Impedance | >200TW in parallel with 20pF, <2pF guarded (10MW with zero check on). |
| Small Signal Bandwidth At Preamp Output | Typically 100kHz (–3dB). |
| Reading Rate | |
|---|---|
| To internal buffer | 1200 readings/second |
| To IEEE-488 bus | 500 readings/second |
| To front panel | 17 readings/second at 60Hz 15 readings/second at 50Hz |
| Reading storage | 2500 readings |
• >200TW input impedance on voltage measurements.
• Charge measurements from 10fC to 20µC.
• High speed—up to 1200 readings/second.
• Interfaces readily with switches, computers, and component handlers.
• Cancels voltage and current offsets easily.
• Leakage currents
• Ion selective electrode measurements
• PH measurements
• Conductivity cells
• Potentiometry
- Conforms with European Union Directive 89/336/EEC EN55011, EN50082-1, EN61000-3-2, EN61000-3-3, FCC part 15 class B.
SKU: KEIT-6514
