Inukun VERSATRAX 100 Miniature Pipe Inspection System

Larger

SKU: INUK-VT100P-SP45-AL

Categories

Pipe Cameras

Documents

Datasheet

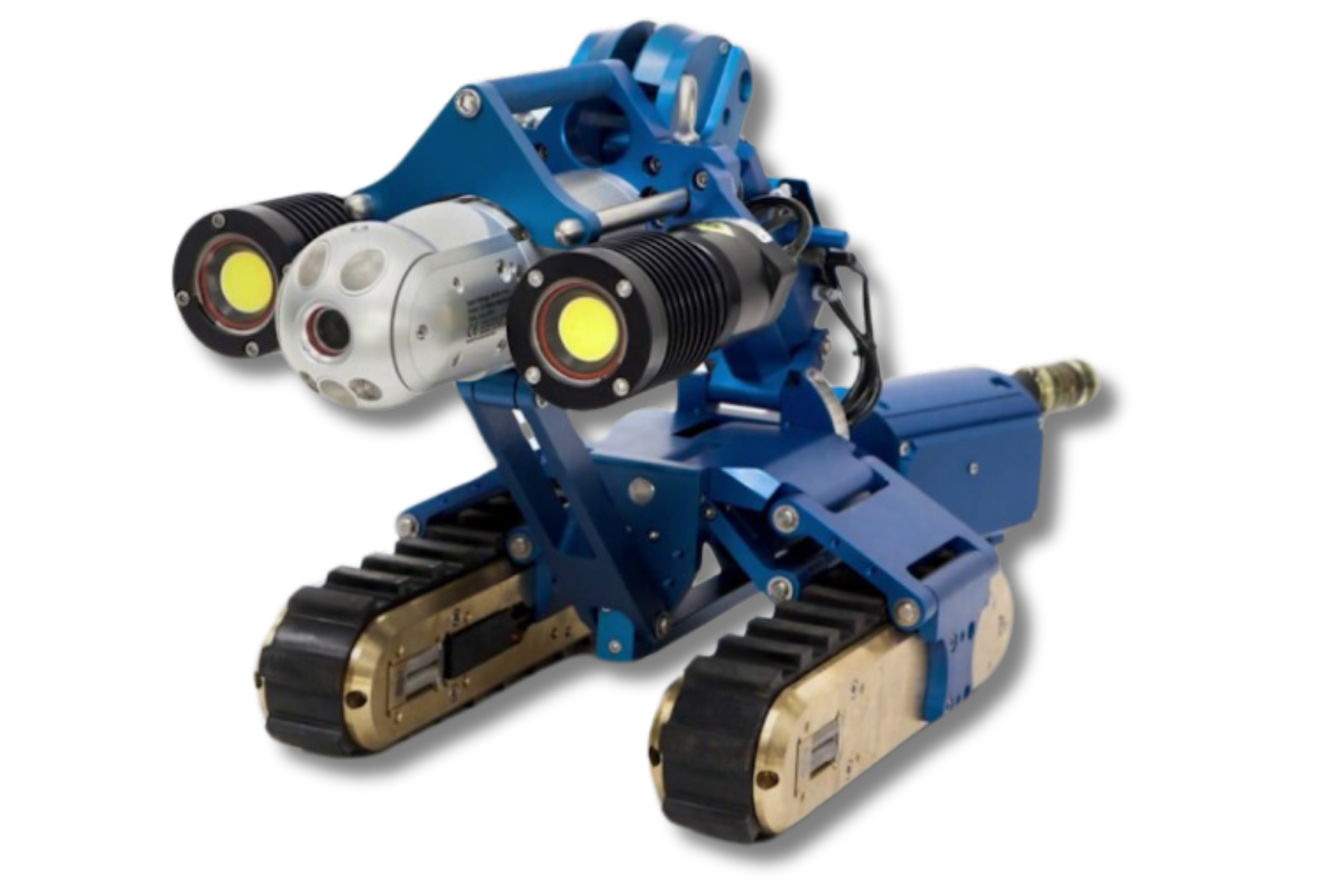

The Inuktun VERSATRAX 100 is a miniature pipe inspection system with a variety of configurations that can tackle almost any confined space inspection application. Offering full modularity, the Inuktun VERSATRAX 100 can be arranged either inline for small diameters, in parallel configuration for larger pipes and ductwork, or with a magnetic attachment for vertical and inverted travel on ferrous surfaces.

Several configurations are available for the Inuktun VERSATRAX 100 because of its flexible system. Discuss your specific application requirements with your sales representative. With this latest design, you can connect a camera directly to the tether cable, so it also works as a standalone drop camera too. And it is truly portable; the entire system can be packaged in hard shell, industrial carry cases making it easy to transport and quick to setup in almost any environment.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Depth Rating	60 m (200 ft)
Maximum Tether Length	300 m (1,000 ft)
Maximum Speed	9 m (30 ft) per minute dependent on track type
Vehicle Payload	Up to 4.5 kg (10 lb)
Front Facing Camera	Inuktun Spectrum 45™ Optional: Inuktun Sapphire™ (parallel and/or inline) Inuktun Spectrum 90™ (parallel)
Rear Facing Camera	Inuktun Onyx™ (inline) Optional: Inuktun Sapphire™ (parallel)
Operating Temperature	0 °–50 °C (32 °–122 °F)*
Vehicle Weight	6.8 kg (15 lb) parallel
Standard Components	2 × brass Inuktun Microtracs™ 1 × Inuktun Spectrum 45™ camera Auxiliary LED lights (parallel vehicle) Weight set (parallel vehicle) Inline and / or parallel chassis and wiring harness 100 m (330 ft) tether PC-based controller with ICON™ control and reporting software
