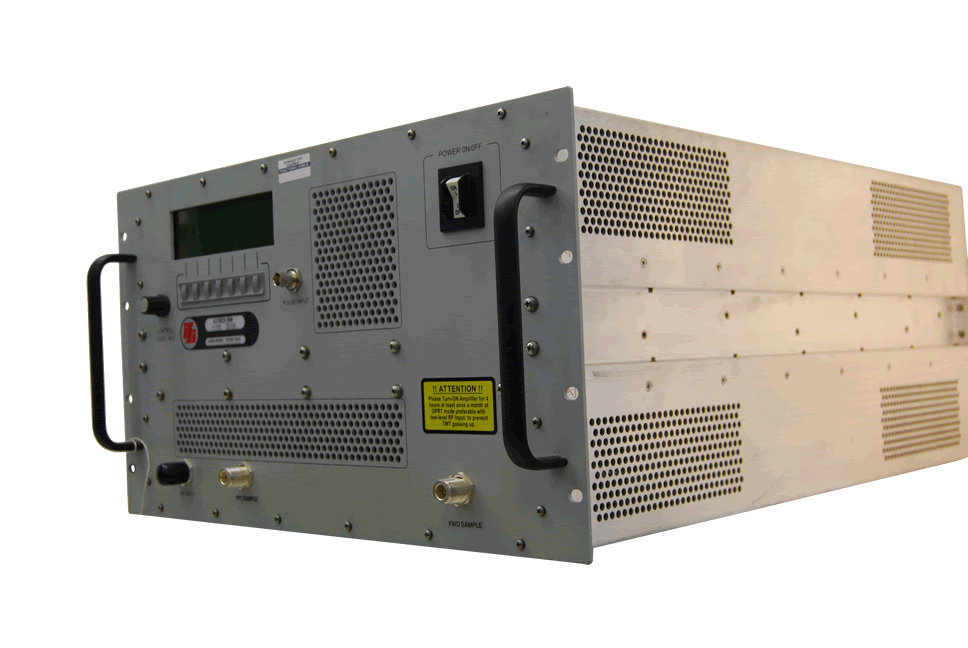

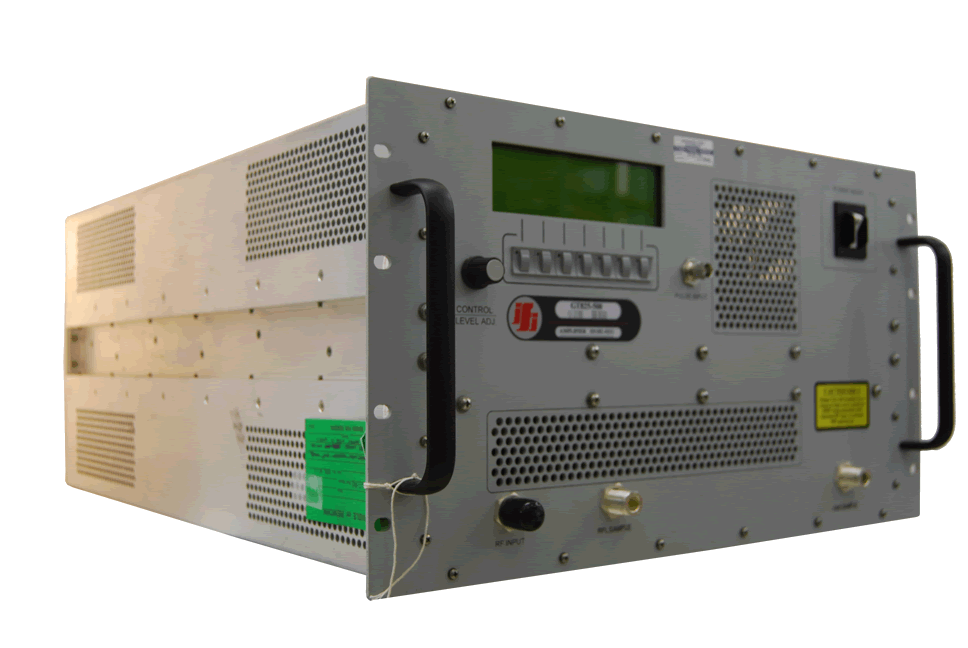

The IFI GT-500 Series include a full complement of RF and hardware protection systems including high VSWR, over-current and voltage protection as well as redundant thermal and airflow sensors to prevent the TWT from overheating.
It features modular construction and this concept of modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities.
Features
- Instantaneous Broadband Frequency Range
- Modular Design Construction
- Rugged Construction & High Reliability
- Backlit LCD Display
- Integrated Force Air Cooling
- Self-diagnostic circuitry
- IEEE-488 interface, RS232
- Solid State Power Supply
Specifications
| Min Pwr Out |
500 Watts |
| Min Sat Gain |
57 dB |
| Input/output Impedance: |
50 ohms |
| RF Input/ Sample Connectors: |
Type N Female, unless specified otherwise |
| RF Output Connector: |
Type SC or 716 Female up to 8 GHz, 8-12 GHz is WR90, 12-18 GHz is WR62, 7.5-18 GHz is WRD750, 6.5-18 GHz is WRD650. Other waveguides available by request or specification |
| Input VSWR: |
2.0:1 |
| Output VSWR |
2.5:1 |
| Pulse Input: |
BNC Female Front Panel {TTL into 50 ohms standard} consult factory for special requirements |
| Pulse Width Range: |
Up to CW |
| PRF Range: |
Up to 100 KHz Standard, Higher PRF ranges available consult factory |
| Duty Cycle: |
Up to CW (Higher PRF ranges subject to TWT specification) |
| Rise & Fall Time: |
25nsec nominal; 40 nsec maximum |
| Pulse to Pulse Jitter: |
+/- 5 nsec maximum |
| Pulse Recovery Time: |
150 nsec maximum |
| Pulse Delay: |
250 nsec maximum / 180 nsec typical |
| Pulse Droop: |
0.5 dB/100usecs, 0.1dB/10usec |
| Power Output Stability: |
0.2dB Pulse to Pulse at constant drive level & PRF |
| Pulse On/Off Ratio |
80 dB |
| Phase Stability Pulse to Pulse: |
+/-1 degree nominal |
| Temperature: |
0° to 50° C operating, -40° to 70° C non-operating |
| Humidity: |
95% without condensation |
| Altitude: |
10,000 feet operating, 50,000 non-operating |
| Cooling System |
Air cooled, self-contained |
| Modulation: |
All types, AM, FM, Pulse |
| Configuration: |
Rack Mount as specified in Model Table |
| Spurious Outputs |
<-60 dBc nominal |
