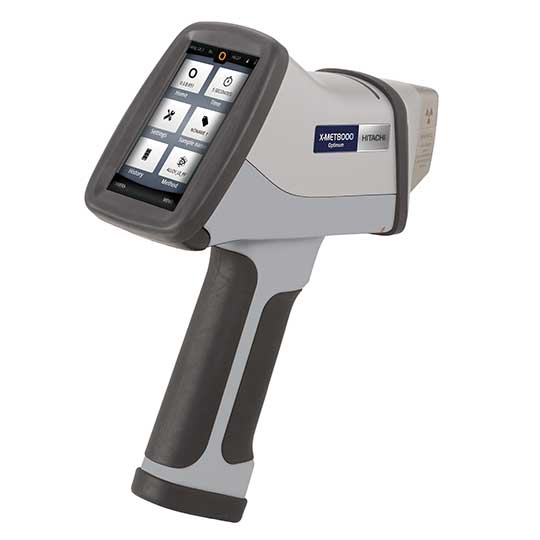

Hitachi X-MET8000 Handheld XRF Analyzer Series

The Hitachi X-MET8000 Handheld XRF Analyzer Series provides rapid alloy grade identification and accurate testing of a wide variety of materials, using the combination of a high performance X-ray tube and a large area silicon-drift detector (SSD). This analyzer can test materials such as solid and power metals, polymers, wood, solutions, soil, ores, minerals, and more. The X-MET8000 Series are a portable unit, designed for field testing and metals.

ATEC provides the Hitachi X-Met8000 Smart and the X-MET8000 Optimum for rental.

Product Info Product Options Related Products

Model	X-MET8000 Smart	X-MET8000 Optimum
X-ray tube	40 kV	40 kV or 50 kV (depending on application)
X-ray tube filters	Single filter	6-position filter wheel for the optimised analysis of all elements from Mg to U
Detector	Large area SDD
Element range	K – U	Mg – U
Max. sample temperature	400°C	100°C 400°C with HEROTM (heat resistant) window (optional)
IP54 rating	Yes
Weight	1.5 kg
Battery life	10 – 12 hours
Protection against detector window damage	Thick Kapton® window	Optional window shield

Large grade display with closest match information
Integrated 4.3” Blanview® LCD color touch screen display with excellent visibility and readability, even in direct sunlight
Versatile: analyze valuable metals, impurities and toxic elements (e.g. Pb and Cd) to identify potentially harmful pieces
An integrated computer for enhanced reliability, weather protection, and faster data processing
Accurate chemistry in seconds, even for tramp/trace elements
Optimized nose design to test materials inside bends and corners (e.g. welds)
Tested to MIL-STD 810G for drop, vibrations, and shocks
Ergonomic, well balanced, and lightweight analyzer (1.5 kg with battery)
Intuitive user interface

Optional:

Portable Bluetoth Printer
Holster and Belt

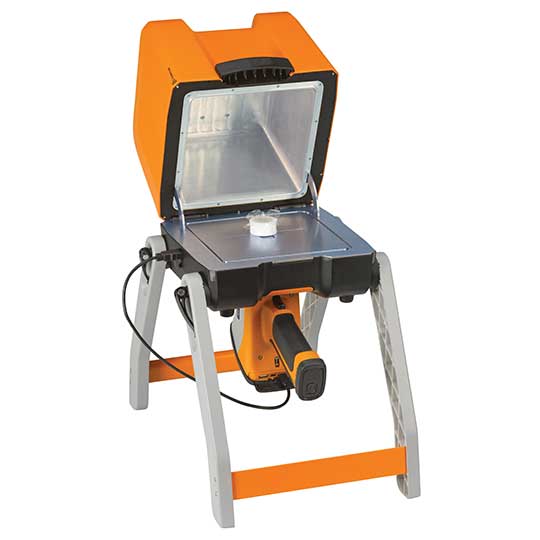

Benchtop Stand
Light Stand and Safety Shield
Light Radiation Shield
Bluetooth Barcode Scanner

Soil
Mining

RoHS Directive (2011/65/EU)
EPA Method 6200
ASTM E1476
CPSIA (Consumer Product Safety Improvement Act)

SKU: HITA-X-MET8000-SERIES

Product Options

Feature	X-MET8000 Smart	X-MET8000 Optimum
Bluetooth	Included	Included
WiFi	Included	Included
Integrated camera	Optional	Optional
Small-spot collimator	Not Included	Optional
Report generator	Included	Included
