Hioki MR8847A Memory HiCorder Rentals

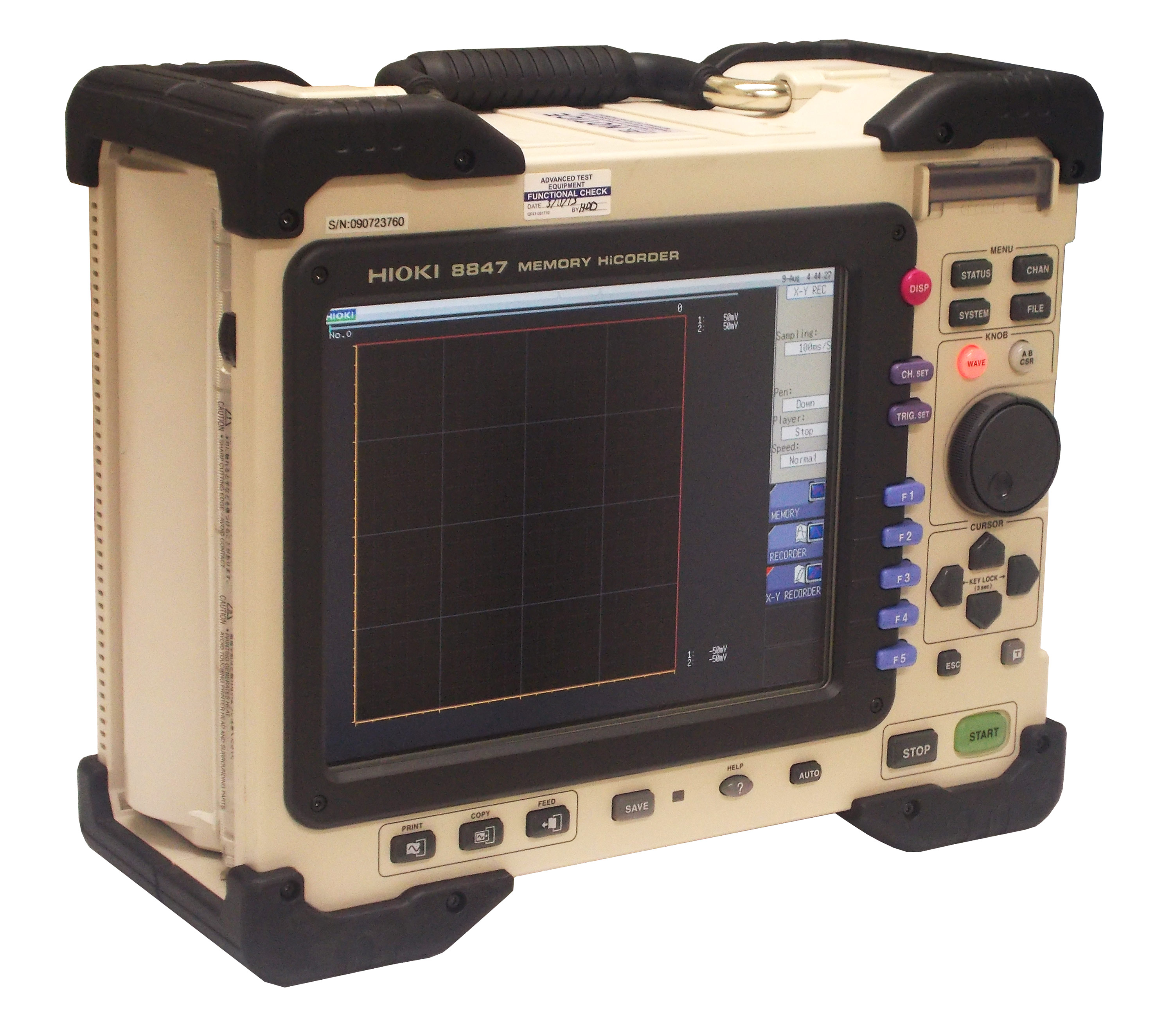

Hioki MR8847A Memory HiCorder

The Hioki MR8847A Memory HiCorder is a high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, acceleration and rotation due to complete isolation between channels and from each channel to the ground.

Amplifier Research 1000L RF Amplifier 10 kHz - 220 MHz

Amplifier Research 1W1000 Broadband RF Amplifier | 100 kHz - 1000 MHz

Instantaneous frequency response of 100 kHz - 1000 MHz
Type N Female RF connectors
Forced air cooling (self-contained fans)

Amplifier Research 250L Solid State RF Amplifier 10 kHz - 220 MHz

Amplifier Research 50W1000B RF Power Amplifier, 50W, 1000MHz

RATED OUTPUT POWER: 50 watts minimum
INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum
POWER OUTPUT @ 3dB COMPRESSION Nominal: 70 watts Minimum: 50 watts

Amplifier Research 5700TP12G18 Pulse Amplifier 12 GHz - 18 GHz

Empower 2175 Solid State RF Amplifier 80 MHz - 1 GHz, 500W

Solid-state linear design
Ideal for EMC testing both IEC CE marking and Mil STD 461 Radiated Susceptibility RS103
Suitable for Multi-tone, CW, AM, FM, pulse, and digital modulation types

Empower 2180 Solid State Broadband High Power Amplifier | 1 GHz – 2.5 GHz, 2000 W

Solid-state class AB design
Suitable for CW, AM, FM, Pulse and some linear applications (consult factory for other modulation types)
Compact modular design

Empower 2207 Solid State Broadband High Power Amplifier 1 - 2 GHz, 4 kW

Blanking Input
Solid-state GaN design
Compact Modular design

Empower 2208 Solid State Pulse Amplifier | 8 kW, 1 – 2 GHz

Blanking Input
Solid-state GaN integration
Compact Modular design

Empower 2223 Solid State Broadband Power Amplifier | 500 MHz to 6 GHz, 150 W

Solid-state Class AB, compact modular design
Suitable for CW, AM, FM, Pulse and some linear applications (consult factory for other modulation types)
Embedded directional coupler – eliminates the need for external component

Quarterwave 9108/96306-E25H80 Amplifier

Ultra low noise output
Modular designs
Wide range of stable voltage adjustment

Quarterwave 9108/96306-H80J18 Microwave Amplifier 8 GHz - 18 GHz, 2 kW

Quarterwave 9108/96506-J12J18 TWT Pulse Amplifier | 12 GHz – 18 GHz, 3.4 kW

Microprocessors provide access to monitor TWT conditions
Operable in a labratory or out in hostile field environments
Maximum Reliability

Quarterwave 9114/96706-G40H80 TWT Pulse Amplifier | 4 – 8 GHz, 5 kW

Logimetrics A710/IJ Microwave TWT Amplifier

Logimetrics A710/U Pulsed Microwave TWT Amplifier

Advanced Amplifier AA-10K250m-500 Solid State RF Amplifier

Designed for EMI/RFI, lab, CW/Pulse, and all communication applications
Small form factor, rack mounted system Class A/AB Linear design
High Power Advanced technology devices

Advanced Amplifiers AA-1218G-3.5KW-PT TWT Pulse Amplifier | 12 GHz - 18 GHz, 3500 W

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous S and C-Band octave bandwidth

Advanced Amplifiers AA-12G-2KW-PT TWT High Power Pulse Amplifier

Produces reliable pulsed RF power
Ultra-low noise output
Small form factor 5U chassis

Advanced Amplifiers AA-12G-4KW-PT TWT Pulse Amplifier

Produces reliable pulsed RF power
Ultra-low noise output
Small form factor 5U chassis

Advanced Amplifiers AA-12G-4KWP | 1.0 – 2.0 GHz, 4KW

Small form factor rack-mounted system
Class AB linear GaN design
Instantaneous L-Band octave bandwidth

Advanced Amplifiers AA-12G-8KW-PT-COMBINER Pulsed TWT Amplifier | 1 - 2 GHz, 8 kW

Modern TWT design with internal monitoring
Instantaneous L-Band octave bandwidth
Suitable for linear high peak pulse applications

Advanced Amplifiers AA-12G-8KWP Pulsed Solid-State RF Amplifier | 1.0 - 2.0 GHz, 8 kW

Pulsed Solid-State RF Amplifier
Frequency range of 1 to 2 GHz
Minimum voltage of 220 V

Advanced Amplifiers AA-20M1G-200 Solid-State High Power Amplifier

Designed for EMI/RFI, lab, CW/Pulse and all communication applications
Small form factor, rack mounted system
Class A/AB Ultra-Linear design

Advanced Amplifiers AA-24G-4KWP Pulsed RF Amplifier | 2.0 GHz - 4.0 GHz, 4kW

Small form factor rack-mounted system
Class AB linear GaN design
Instantaneous S-Band octave bandwidth

Advanced Amplifier AA-24G-5KW-PT Pulsed Amplifier

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous E and F-Band octave bandwidth

Advanced Amplifiers AA-2640G-200 Solid State Power Amplifier | 26.5 – 40 GHz, 200 W

Small form factor, rack mounted system
Class A/AB Linear design
High Power Advanced technology devices

Advanced Amplifiers AA-28G-120 CW & Pulse Solid-State High Power Amplifier | 2.0 - 8.0 GHz, 120 W

Designed for EMI/RFI, lab, CW/Pulse, and all communication applications
Small form factor, rack mounted system
Class A/AB Linear design

Advanced Amplifiers AA-28G-2KW-PT TWT Pulse Amplifier | 2.0 - 8.0 GHz, 2000W

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous S and C-Band octave bandwidth

Advanced Amplifiers AA-28G-400 Solid State CW/Pulse Amplifier | 400 W, 2 – 8 GHz

Designed for EMI/RFI, lab, CW/Pulse, and all communication applications
Small form factor, rack mounted system
Class A/AB Linear design

Advanced Amplifiers AA-4050G-4 Solid State Amplifier | 40.0 – 50.0 GHz, 4 W

Small form factor, rack mounted system
Class A/AB Linear design
High power advanced technology devices

Advanced Amplifiers AA-48G-5KW-PT Pulsed TWT Amplifier | 4.0 - 8.0 GHz, 5 kW

Small form factor 8U chassis
Modern TWT design with internal monitoring
Instantaneous G and H-band octave bandwidth

Advanced Amplifiers AA-48G-5KWP Solid State Pulse Amplifier | 4.0 - 8.0 GHz, 5000 W

Rack-mounted system
Class AB linear design
Instantaneous wide bandwidth

Advanced Amplifiers AA-618G-2KW-PT High Power TWT Pulse Amplifier | 6.50 - 18.0 GHz, 2000W

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous L-Band octave bandwidth

Advanced Amplifiers AA-812G-5KW-PT TWT Pulse Amplifier | 8 GHz - 12 GHz, 5000 W

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous S and C-Band octave bandwidth

Advanced Amplifiers AA-818G-2KW-PT Pulsed RF Amplifier

Rack-mounted system
Built-in protection circuits
High reliability and ruggedness

Exodus AMP2043P-4KW Solid State RF Amplifier

Small form factor rack-mounted system
Class AB linear Advanced technology design
Instantaneous L-Band octave bandwidth

Exodus AMP2083P-2KW Solid State RF Amplifier

Designed for EMI/RFI, lab, HIRF/Pulse applications
Small form factor rack-mounted system
Class AB linear Advanced technology design

Exodus AMP2136P-2KW Solid State RF Amplifier

Designed for EMI/RFI, lab, HIRF, radar, high power pulse applications
Small form factor rack-mounted system
Class AB linear high power advanced technology design

IFI GT186-1000 Gridded TWT Amplifier 6 GHz - 18 GHz, 1000 W

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse Width and pulse
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI GT186-200 Gridded TWT Amplifier 6 GHz - 18 GHz, 200W

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse Width and pulse
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI GT186-300 Gridded TWT Amplifier 6 GHz - 18 GHz, 300W

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse Width and pulse
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI GT251-500A CW/Pulse TWT Amplifier 1 GHz - 2.5 GHz, 500 Watts

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI GT825-500 High Power Pulse TWT Amplifier 2.5 - 8 GHz, 500 Watt

Instantaneous Broadband Frequency Range
Modular Design Construction
Rugged Construction & High Reliability

IFI PT-KW HP Series Pulse TWT Microwave Power Amplifiers

Input/output Impedance: 50 ohms
RF Input/ Sample Connectors: Type N Female, unless specified otherwise
RF Output Connector: Type SC or 716 Female up to 8 GHz, 8 – 12 GHz is WR90, 12 – 18 GHz is WR62, 7.5 – 18 GHz is WRD750, 6.5 – 18 GHz is WRD650. Other waveguides available by

IFI PT186-2kW Pulse TWT Amplifier | 6.5 GHz - 18 GHz

GPIB IEEE 488 & RS232 remote control
RF sample port on the front panel, 112R for rear panel
Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less

IFI PT186-3KW Pulse TWT Amplifier 6 GHz - 18 GHz

Solid State Power Supply Designs
Instantaneous Broadband Frequency ranges
Modular Design Construction

IFI PT188-1KW Pulse High Power TWT Microwave Amplifier 8 - 18 GHz

Frequency Range: 8-18 GHz
Min. Power Output: 1KW
Min. Sat Gain: 60 dB

IFI PT251-2KW Pulsed TWT Amplifier 1 GHz - 2.5 GHz

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse Width, Pulse
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI PT42-5KW Pulse Amplifier | 2 GHz - 4 GHz, 5000W

Solid state power supply
Instantaneous broadband frequency ranges
Modular design construction

IFI PT5727-4KW Pulse High Power TWT Amplifier 2.7 GHz - 5.7 GHz

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse width, Pulse
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI PT82-2KW Pulse TWT Amplifier

Solid State Power Supply Designs
Instantaneous Broadband Frequency Ranges
Modular Design Construction

IFI PT825-2KW Pulse TWT Amplifier 2.5 GHz - 8 GHz

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours,
Status Indicators: Power On, Standby, RF On/Operate,
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent

IFI PT84-5KW Pulse Amplifier 4 GHz - 8 GHz

Solid State Power Supply Designs
Instantaneous Broadband Frequency ranges
Modular Design Construction

CPI PTC7353 Pulsed TWT Amplifier | 2 – 8GHz, 2KW

Digital front panel
Forward power monitoring
Reverse power protection

CPI PTCM1209 Pulsed TWT Amplifier | 8 GHz - 18 GHz, 2500 W

Pulsed TWT Amplifier
User-friendly design
Frequency range of 8 to 18 GHz

IFI S21-4KWP-2KWP-Flex Solid State Microwave Pulse Power Amplifier, 1GHz - 2GHz, 4000 Watts

Solid State Design
Rugged Construction & High Reliability
Instantaneous Broadband Frequency range

IFI S31-500-900P | Dual Mode CW/Pulse

VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance, Open and Short Circuit Protection.
GPIB IEEE 488 and RS232 Remote Control
RF Sample Port on the Front Panel, 112R for rear panel
