Fujikura FSM 90R Fusion Splicer Kit with CT50 & RS03

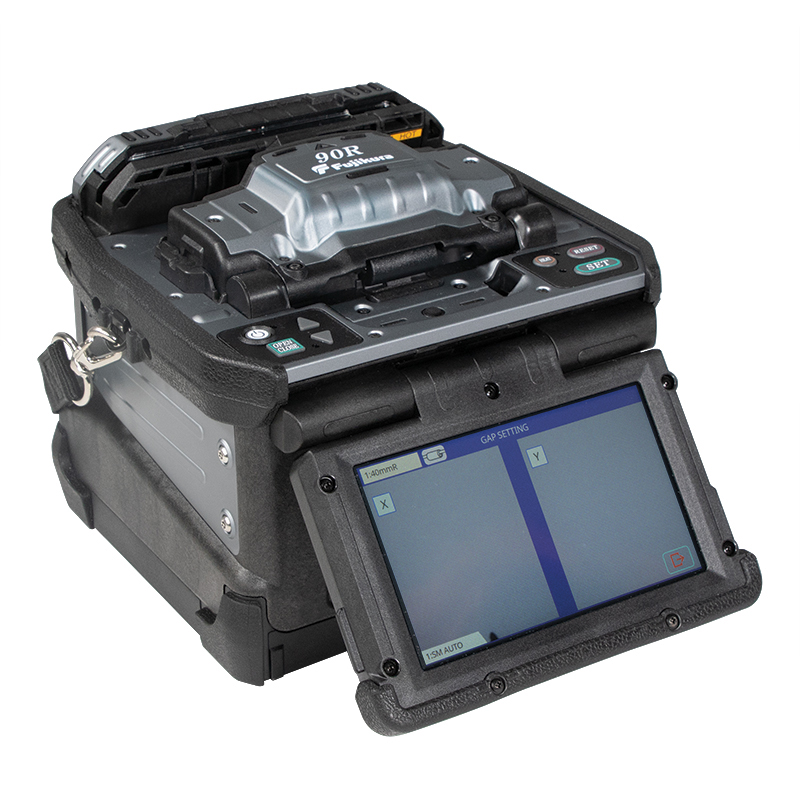

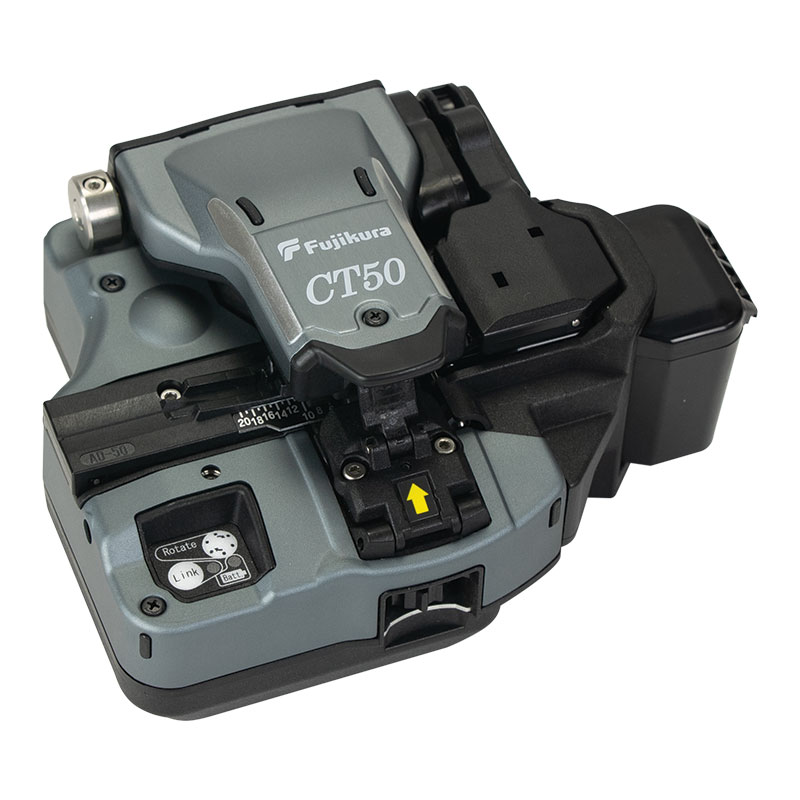

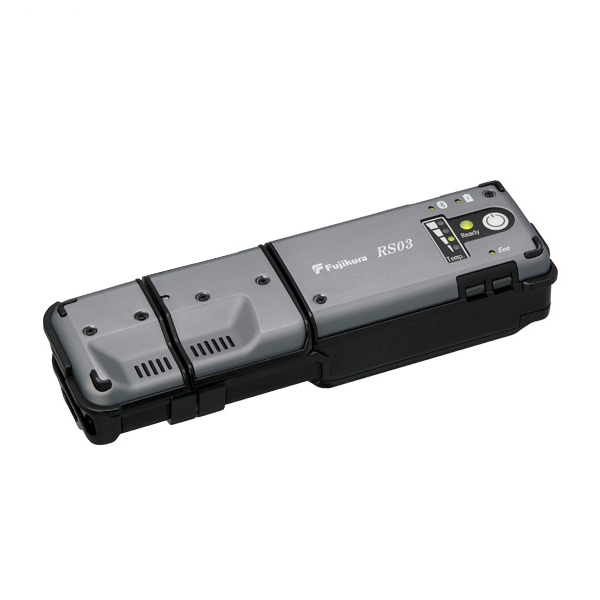

The Fujikura FSM 90R Fusion Splicer Kit is a comprehensive solution for all wireless communication splicing needs. The splicer features the FSM 90R mass fusion splicer, which lowers ribbon splicing costs and speeds up the process with automation for cleave tracking, wind protection, splice start, and tube heating. The kit includes the CT50 Fiber Cleaver, known for its automated blade rotation and durability, with a 60,000 single-fiber cleave blade life. Additionally, the RS03 Ribbon Fiber Stripper offers easy operation with a high-capacity battery for up to 600 stripping cycles, ergonomic design, and fast heating time.

90R Fusion Splicer
Fiber count can be spliced	Up to 16 fiber ribbon
Applicable fiber	Single mode optical fiber Multi mode optical fiber
Applicable coating cleave length	10mm

90R Fusion Splicer

Fiber count can be spliced

Up to 16 fiber ribbon

Applicable fiber

Single mode optical fiber
Multi mode optical fiber

Applicable coating cleave length

10mm

Fiber Splice Performance
Splice loss	ITU-T G.652 : Avg. 0.05 dB
ITU-T G.651 : Avg. 0.02 dB
ITU-T G.653 : Avg. 0.08 dB
ITU-T G.655 : Avg. 0.08 dB
ITU-T G.657 : Avg. 0.05 dB
Splice time	SM FAST mode : Avg. 14 to 15 sec.
SM AUTO mode : Avg. 19 to 20 sec.

Fiber Splice Performance

Splice loss

ITU-T G.652 : Avg. 0.05 dB

ITU-T G.651 : Avg. 0.02 dB

ITU-T G.653 : Avg. 0.08 dB

ITU-T G.655 : Avg. 0.08 dB

ITU-T G.657 : Avg. 0.05 dB

Splice time

SM FAST mode : Avg. 14 to 15 sec.

SM AUTO mode : Avg. 19 to 20 sec.
