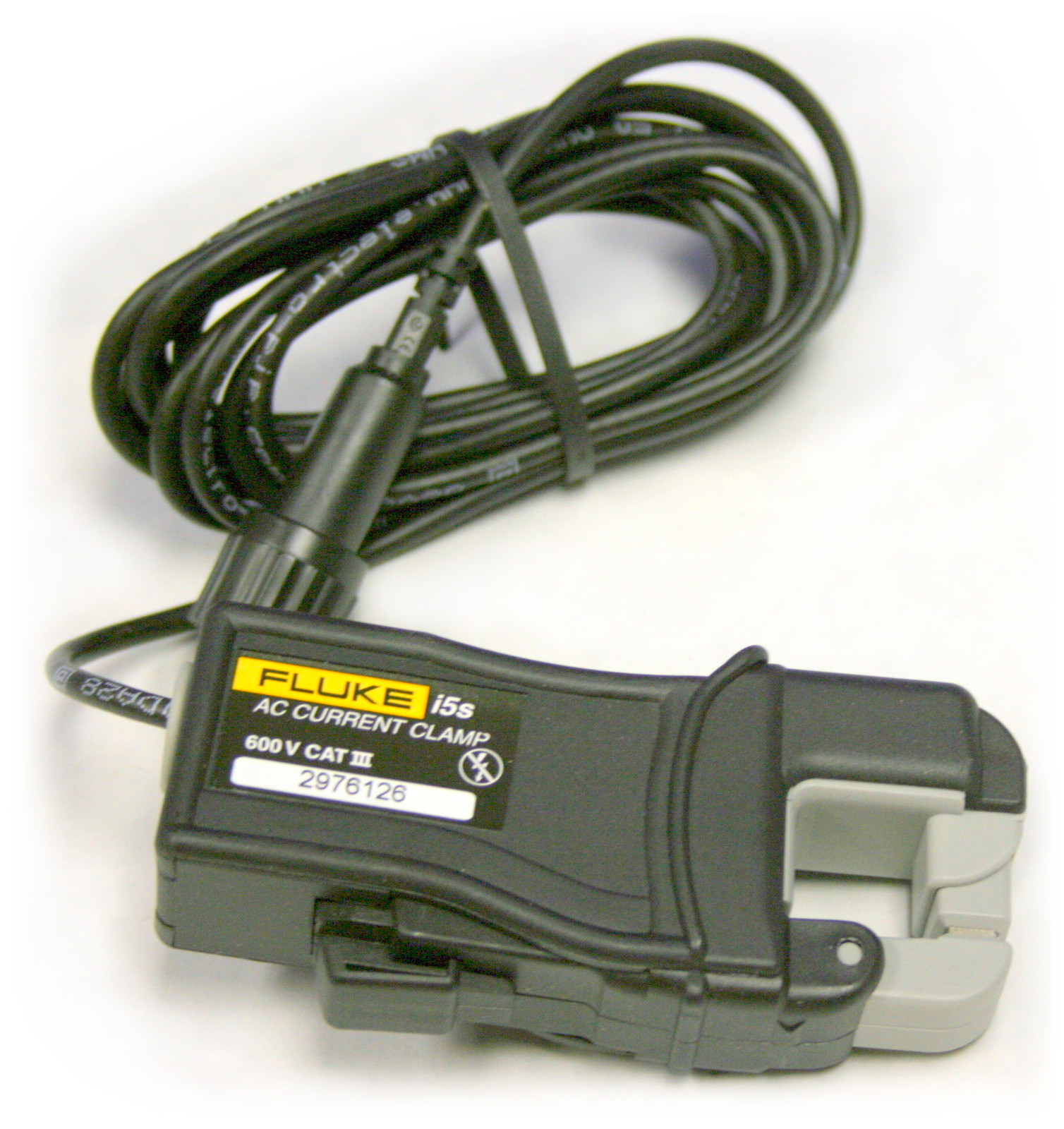

Fluke i5s AC Current Clamp
This oscilloscope probe is an accessory and is only available to rent with an oscilloscope.
See All Oscilloscopes
The i5s is compatible with any instrument that can accept a standard BNC connector and is capable of ac millivolt measurements; the Current Clamp can also be used with digital multimeters using a BNC-to-dual banana plug adapter. The Current Clamp produces an output of 400 mV ac per 1 A ac input level
Reference Conditions: 23 ± 5 °C, 20 to 75% RH; conductor centered in jaw opening; no DC component; no adjacent conductor.
Measurement Range: 10 mA to 6 A
Output: 400 mV/A
Accuracy (48 Hz to 65 Hz): 10 mA to 1 A 1% + 5 mA; 1 A to 5 A 1%
Phase Shift (48 Hz to 65 Hz): 10 mA to 100 mA Unspecified; 100 mA to 5 A 4°
Crest Factor: ≤ 3, add 0.7 % to accuracy
Typical Bandwidth: 40 Hz to 5 kHz
Working Voltage: 600 V ac rms, in compliance with EN61010
Common Mode Voltage: 600 V ac rms from earth ground, in compliance with EN61010
Input Load Impedance (of host instrument): >1 M Ω in parallel with up to 47 pF
Maximum Non-destructive Current: 70 A
Duty Cycle: 0.01 A to 6 A continuous
Influence of Adjacent Conductor: ≤ 15 mA/A (@ 50/60 Hz)
