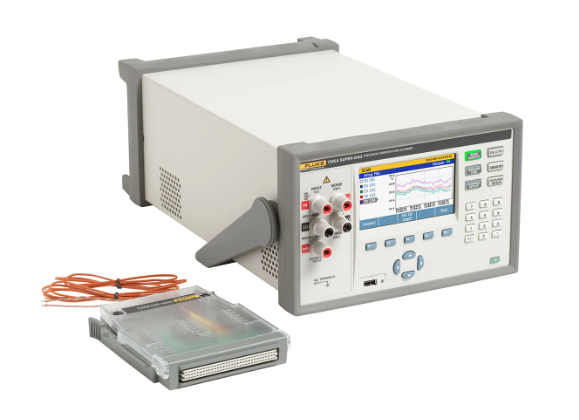

Fluke 1586A/2HC Precision Temperature Scanner

The Fluke 1586A/2HC Precision Temperature Scanner is designed for measuring thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance. The input channels for the 1586A/2HC model have up to 40 isolated universal inputs. The Fluke 1586A/2HC Precision Temperature Scanner allows 4 operation modes, including scan, monitor, measure, and digital multimeter (DMM). With 2 independent and user-defined alarms for each channel, users can identify when an upper or lower range has been exceeded.

Product Info Related Products

Channel Capacity	Total analog channels: 45 Voltage/resistance channels: 41 Current channels: 5 Digital I/O: 1 (8-bit TTL) Totalizer: 1 Alarm outputs: 6 Trigger input: 1
Sample Rate	Fast: 10 channels per second (0.1 seconds per channel) Medium: 1 channel per second (1 second per channel) Slow: 4 seconds per channel
Display Resolution	6 1/2 digits
Input Module Options	2 rear panel slots ('x' designates slot 1 or slot 2 below)
Internal High-Capacity Module configuration	20 channels per module (x01 - x20) 2 dedicated current channels (x21 - x22) (3- and 4-wire connections require 2 channels)
Math Channels	20 channels Operations: sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum
Triggers	Interval, external (trigger input), alarm, remote (bus), manual, automated test
Memory	Scan data RAM: 75,000 readings with timestamp Internal memory: 20 MB
Standard Interfaces	USB host, USB device, Ethernet 10/100 LAN, RS-232 temperature source control for automated temperature data collection from Fluke Calibration drywells and baths
Mains Voltage	100 V setting: 90 to 100 V 120 V setting: 108 to 132 V 220 V setting: 198 to 242 V 240 V setting: 216 to 264 V
Mains Frequency	47 to 440 Hz
Input Protection	50 V all functions, terminals and ranges
Dimensions	5.9 x 9.6 x 15.2" (150 x 245 x 385 mm)
Weight	13.2 lb. (6 kg)
Conformity	CE, CSA, IEC 61010 3rd edition

Best temperature measurement accuracy
Flexible configuration for the factory or bench-top
Real-time graphing in color
Data portability and security
Automated sensor calibration
Measure thermocouples, PRTs, thermistors, DC voltage, DC current, and resistance
Input channels: Up to 40 isolated universal inputs
Selectable scan speed: Up to 10 channels per second
Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
Real-time color trending: Chart up to four channels simultaneously
6 1/2 digit display resolution for DC voltage, DC current, and resistance
Current reversal minimizes thermoelectric effects, improving PRT/RTD measurement accuracy
