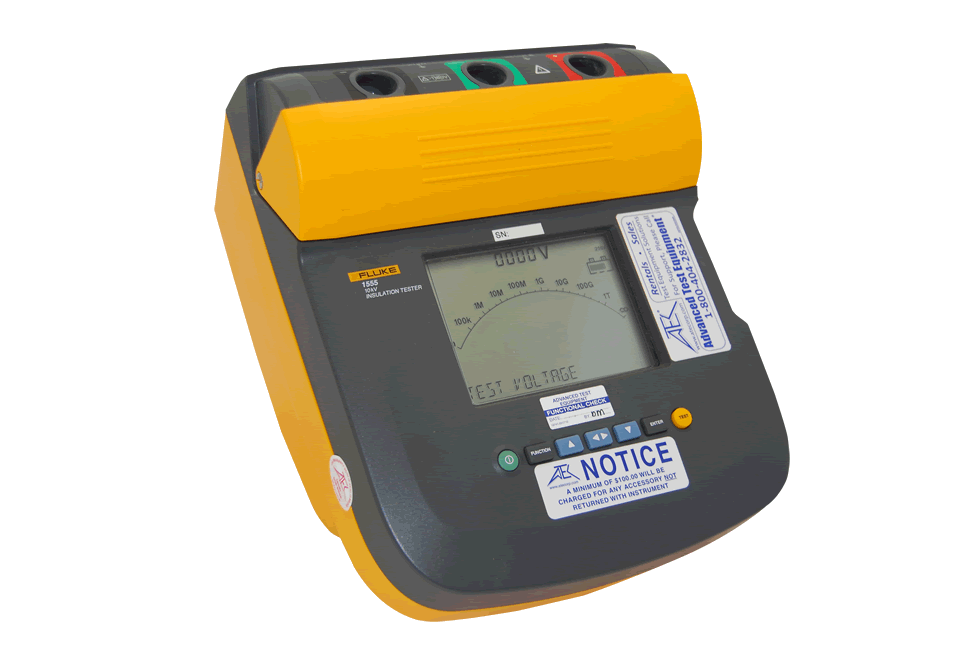

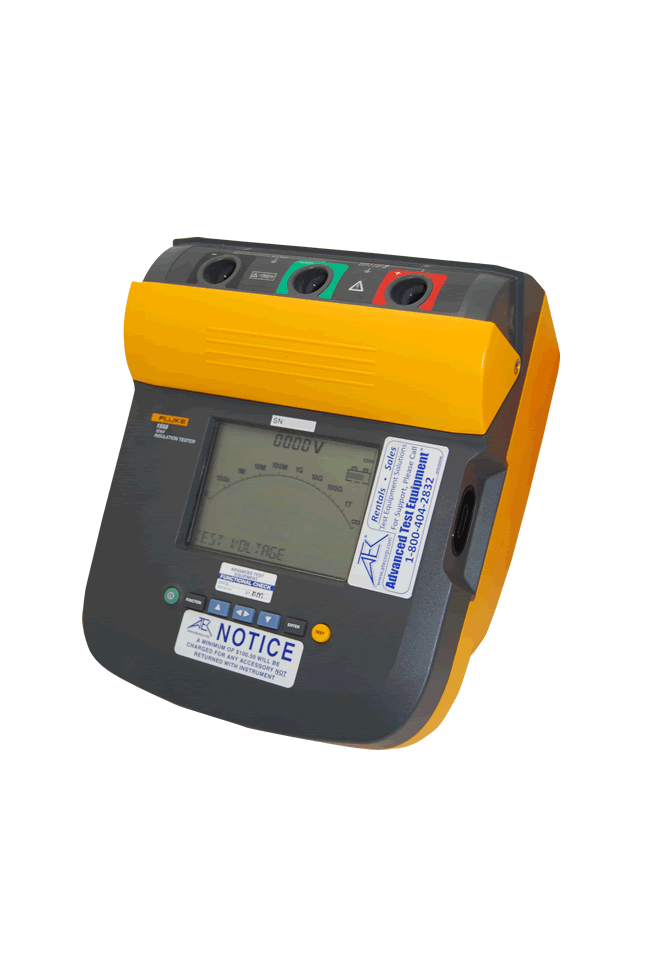

Fluke 1555 Insulation Resistance Tester

The Fluke 1555 insulation resistance tester is capable of testing up to 10kV, providing all test voltages for the range specified in IEEE 43-2000 with a CAT IV 600 V and CAT III V safety ratings. This device offers a PC interface and 99 measurement storage locations, making the Fluke 1555 ideal for preventative maintenance programs.

Product Info

Test voltages of up to 10 kV
Cat III 1000V, CAT IV 600V safety rating
Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety
Selectable test voltages in 50V steps from 250 to 1000V, and 100V steps above 1000V
Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Long battery life gives the user over 750 tests between charges
Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
Guard system eliminates the effect of surface leakage current on high-resistance measurements
Large digital/analog LCD for easy viewing
Capacitance and leakage current measurement
Ramp function for breakdown testing
Resistance measurements up to 2TΩ
Timer settings up to 99 minutes for timed tests
