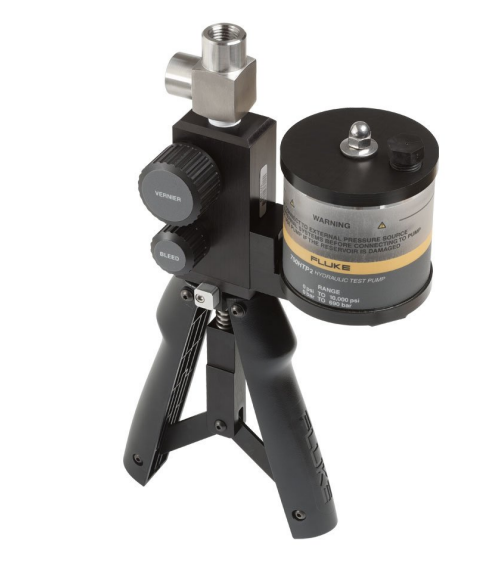

Fluke 700HTP-2 Hydraulic Test Pump
The Fluke 700HTP-2 Hydraulic Test Pump features an integral pressure adjustment function with a maximum range pressure (gauges) of 10,000 PSI/690 BAR. This test pump is compatible with hydraulic oil and water. The 700HTP-2 model utilizes distilled water or mineral-based hydraulic oil as a source for calibrating high-pressure input devices, including pressure transmitters and pressure gauges.
| Dimensions (L x W x D) |
9.5 x 6.1 x 2.6 in (241 x 155 x 66 mm) |
| Weight | 1.29 lb. (0.58 kg) |
| Pump style | Hydraulic |
| Maximum range pressure (gauges) | 10,000 PSI/690 BAR |
| Fluid compatibility | Hydraulic oil and water |
- Variable size stroke adjustment, allows the user to adjust the volume and pressure per stroke
- Integral pressure adjustment vernier knob for fine pressure adjustment
- Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
- Two ¼ inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
- Compatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damage
- Improved priming
- Improved stroke limiting mechanism
