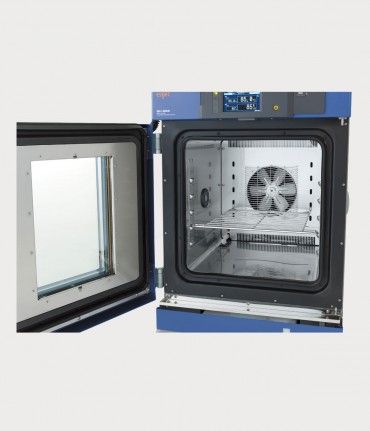

Espec SH Benchtop Chamber Series

The Espec SH series is a line of benchtop chambers offering superb environmental testing performance in a compact design. Available with capacities of either 22.5 L or 64 L, their temperature ranges are -20°C, -40°C, or -60°C to 150°C. The Espec SH series comes equipped with a user-friendly 4.3-inch touch panel display, which allows for three-way access to the chamber and offers a broader range of options for superior expandability. The internal memory can also store sampling data such as temperature and humidity settings, as well as measured values. You can set the recording ON and OFF and configure the interval manually.

The Espec SH Benchtop Chamber Series consists of the following chambers: Espec SH−222, Espec SH−241/242, Espec SH−262, Espec SH−642, and Espec SH−662.

Product Info Related Products

	SH−222	SH−241/242	SH−262	SH−642	SH−662
Exterior Dimensions (W x H x D)	440 x 690 x 696 mm (17.3 x 27.1 x 27.4 in)	440 x 690 x 696 mm (17.3 x 27.1 x 27.4 in)	440 x 690 x 786 mm (17.3 x 27.1 x 30.9 in)	540 x 730 x 921 mm (21.2 x 28.7 x 36.2 in)	540 x 730 x 921 mm (21.2 x 28.7 x 36.2 in)
Interior Dimensions (W x H x D)	300 x 300 x 250 mm (11.8 x 11.8 x 9.8 in)	300 x 300 x 250 mm (11.8 x 11.8 x 9.8 in)	300 x 300 x 250 mm (11.8 x 11.8 x 9.8 in)	400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)	400 x 400 x 400 mm (15.7 x 15.7 x 15.7 in)
Capacity	22.5 L	22.5 L	22.5 L	64 L	64 L
Temperature Range	-20°C – 150°C	-40°C – 150°C	-60°C – 150°C	-40°C – 150°C	-60°C – 150°C
Heat Up Rate	3.2°C /min	3.2°C /min	3.2°C /min	2.9°C /min	2.9°C /min
Pull Down Rate	2.1°C /min	2.1°C /min	2.1°C /min	1.7°C /min	1.7°C /min
Relative Humidity	30 – 95%	30 – 95%	30 – 95%	30 – 95%	30 – 95%

Optional features may include:

Premium design with a space-saving footprint and quiet operation suitable for offices and small labs
One 2" diameter cable port on the right side (Note: previous model series also included a standard port on left)
Removable humidity water tank for SH models (direct water connection optional)
One adjustable stainless steel shelf
Temperature (& humidity) output terminals

*Features vary by models. Contact an account manager for available options.
