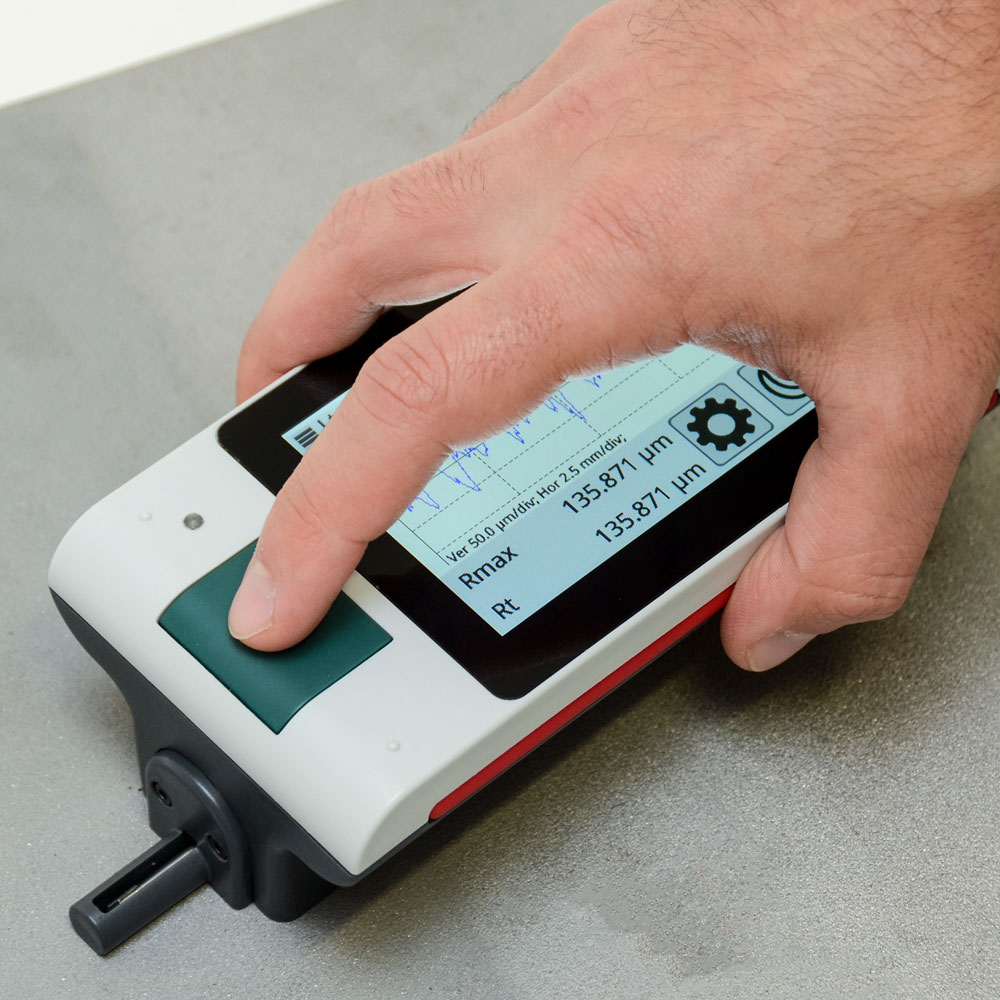

Elcometer 7062 MarSurf PS10 Surface Roughness Tester

The Elcometer 7062 MarSurf PS10 Surface Roughness Tester is a light weight and portable measuring solution for the range of surface roughness measurements required for compliance to International Standards. Elcometer 7062 roughness testers are suitable for assessing surface roughness conditions in a wide range of general industrial applications, particularly where the sample is too large to bring to the laboratory. Elcometer 7062 MarSurf PS10 testers measure surface roughness expressed in terms of Ra, Rz or Rt.

Product Info

Unit of Measurement	Metric, Imperial
Measuring Force	Approx. 0.7 mN
Measuring Range	0-350μm (0-13.78mils) Resolution 8nm (0.315μin)
Cutoff (lc)	0.25mm, 0.8mm, 2.5mm; Automatic (0.010”, 0.030”, 0.100”)
Traversing Length (Lt)	1.5mm, 4.8mm, 15mm; Automatic (0.06”, 0.192”, 0.6”)
Evaluation Length (ln)	1.25mm, 4.0mm, 12.50mm (0.050”, 0.15”, 0.50”)

Multi-Lingual Display: All the required information is displayed on screen with a choice of 14 languages.
Flexible: Can be used in virtually any position; horizontally, vertically, upside down. A height adjustment accessory to accommodate various sample sizes is supplied with each gauge as standard.
Integrated Calibration Standard: No external calibration standard is required; provides greater ease of use.
Drive Unit: Can be rotated and moved longitudinally; enables the stylus pick-up to be moved to the calibrating position. The stylus pick-up is also protected for transport in this position.
Stylus pick-up with removable protection: 2µm (80µin) diamond stylus tip with a measuring force of 0.7 mN. Different styluses are available for various applications.
