Eddyfi Lyft CUI Management Solution

Pulsed Eddy Current Array (PECA)

The Eddyfi Lyft is a portable Pulsed Eddy Current (PEC) system made for corrosion detection through insulation, fireproofing, and weather jackets without surface preparation. It features SmartPULSE optimization, real-time C-scan imaging, and Compensated Wall Thickness measurement for improved sizing of small defects. The system operates with PECA high-productivity arrays and single-element probes, supports up to 300 mm liftoff, and provides onboard acquisition with Lyft GO and advanced analysis with Lyft PRO software. It is IP65-rated and offers Wi-Fi, Ethernet, Bluetooth, and USB connectivity.

Product Info Product Options Related Products

Inspection Method	Pulsed Eddy Current (PEC)
Inspection Range (Wall Thickness)	Up to 100 mm (4 in)
Maximum Liftoff (Insulation + Jacket)	0 – 300 mm (0 – 12 in)
Minimum Detectable Wall Loss	15% from nominal
Weather Jacket Compatibility	Stainless steel up to 1.5 mm Aluminum up to 1.0 mm Galvanized steel up to 1.0 mm
Supported Pipe Diameters	From 25 mm (1 in) up to flat surfaces
Dynamic Acquisition Rate	Up to 15 points/s
Dynamic Scan Speed	75 mm/s (3 in/s typical)
Software Ecosystem	Lyft GO (acquisition), Lyft PRO (advanced analysis), SurfacePro 3D (reporting)
SmartPULSE Optimization	Automatic pulser/receiver setup
Display	10.4 in high-resolution touchscreen, non-reflective, optically bonded
Battery Life	6 – 8 hours, hot-swappable batteries
Weight (with battery)	6.6 kg (14.5 lbs)
Dimensions (W × H × D)	355 × 288 × 127 mm (14.0 × 11.3 × 5.0 in)
Storage	100 GB SSD

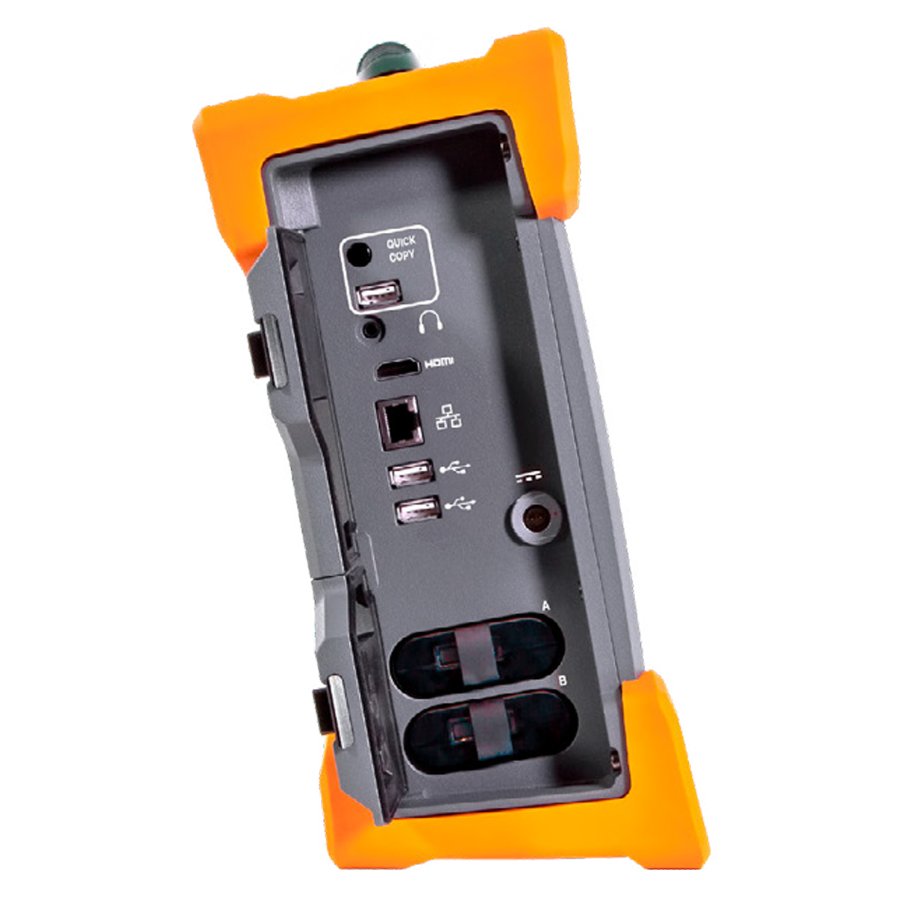

Connectivity	Gigabit Ethernet, Wi-Fi, Dual Mode Bluetooth, USB 2.0 (×3)
Video Output	HDMI
Operating Temperature	0 °C – 40 °C (32 °F – 104 °F)
Environmental Rating	IP65
Surface Temperatures Tested	–150 °C – +500 °C (–238 °F – +932 °F) carbon steel
Number of Channels	7
Compliance	ASME, CE, RoHS, FCC, WEEE, ICES-003

Inspect through thick insulation and fireproofing
Save on insulation removal costs
Real-time imaging for instant results
Unrivalled productivity with PECA
Easy setup with SmartPULSE™ calibration
Highest confidence with Tau-scan™ and PermTool™ advanced analysis tools
Elevated team collaboration and support with Zoom integration
Ensure secure and efficient data management through OneDrive integration
Craft crystal-clear and context-rich reports effortlessly with seamless integration via Eddyfi mobile application

SKU: EDDY-LYFT
