Dranetz MP MeasuringPAD 16 Channel Power Recorder
- 16 differential channels: 16 analog, 8 digital
- High speed sampling: 10 kHz per analog input, 40 kHz per digital input
- Intuitive color touch screen
Dranetz PX5-X-Fast PowerXplorer Power Quality Meter
- Eight channels: 4 voltage & 4 current
- Intuitive color touch screen
- Light weight – About 4 pounds, 2 kg – with rugged rubber boot
Dranetz PX5-400 Power Analyzer
- Tests at 50/60 and 400Hz
- Meets MIL Standard 1399 testing
- Eight channels, 4 voltage & 4 current
Hioki PW3365 Clamp On Power Logger
- Voltage measurement from the top of the cable, zero risk of short circuit
- Supports single to three-phase, 4-wire circuits
- Measure between 90V to 520V
Hioki PW3360 Clamp On Power Logger
- Supports single to three-phase, 4-wire circuits
- Measure between 90V to 780V
- Simultaneously measure up to three single-phase, 2-wire circuits (in the same power system)
Elspec Pure BlackBox Handheld Power Quality Analyzer
- Continuous waveform recording at 256 sample/cycle
- Class A devices IEC30-4-61000
- Conguration FREE Device
CHK Power Quality MIRO PQ45 Power Quality Logger & Analyzer
- Certified to IEC61000-4-30, Class A
- Rugged, shock resistant, portable, and weatherproof – NEMA 4X (IP66 rated)
- WIFI or 3G/4G remote communications
Megger MPQ2000 Portable Power Quality Analyzer
- Power off Phase A or auxiliary, allowing it to be used anywhere without an AC outlet
- Weather proof to NEMA 4 standard for use in any environment
- Auto CT identifies the current that the instrument is connected to and the range that it is in

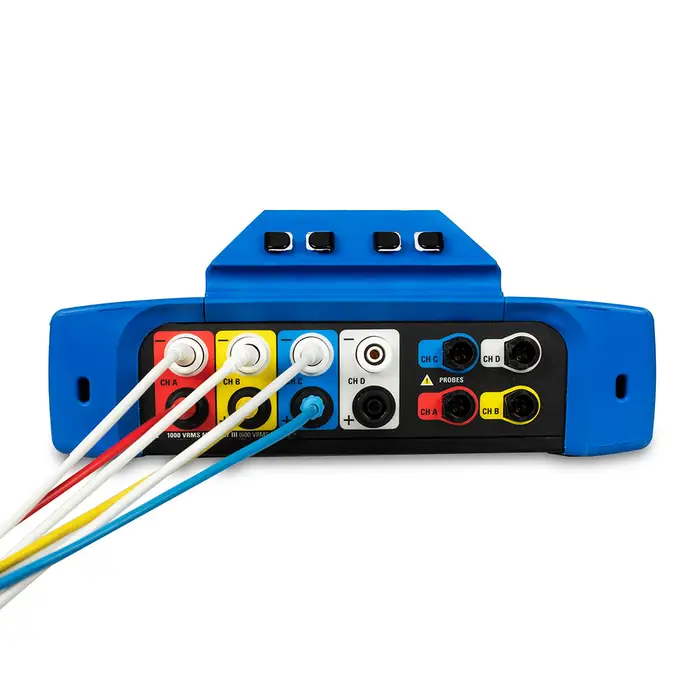

Dranetz HDPQ Xplorer Plus Power Quality Analyzer
- High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
- High Speed Digitized Transients – 1us, 10 to 2000Vpk
- Transient triggers – V & I – waveshape triggers, high speed. Well beyond PQ standards requirements
Dranetz HDPQ Xplorer 400 Power Quality Analyzer
- 50/60Hz and 400Hz operating modes
- 1000Vrms, AC/DC, 512 samples/cycle
- 10 to 2000Vpk
Dranetz HDPQ Xplorer Power Quality Analyzer
- High definition PQ & energy monitoring: 1000 Vrms, AC / DC, 512 samples/cycle
- High speed digitized transients to 1us – to 2000Vpk
- Eight channels, 4 voltage & 4 current
Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer
- High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
- Eight channels, 4 voltage & 4 current
- Advanced PQ – IEC 61000-4-30 Class A & IEEE 1159 compliant
Dranetz HDPQ Guide SP Power Quality Analyzer
- IP65 enclosure
- GPS
- High Definition PQ & Energy Monitoring – 1000Vrms, AC/DC, 512 samples/cycle
Dranetz HDPQ Guide Power Quality Analyzer
- High definition PQ & energy monitoring: 1000 Vrms, AC/DC, 512 samples/cycle
- Eight channels, 4 voltage & 4 current
- AnswerModules: sag directivity, PF capacitor identification, motor: automatic event categorization
Elspec BlackBox G4500 Power Quality Analyzer
- Battery life of up to 2 hours allowing continuous measurement and recording
- No need for cables
- Easy to use everywhere
Dranetz DranXperT
- DranXperT Power Logger with 4 Flex Current Probes 16-inch, 1500 A
- PQ disturbance/event detector, power/energy logger, and sensor logger
- 3 voltage channels – direct measurements up to 600 Vrms, CAT III
Fluke 43B 1-Phase Power Quality Analyzer | 600V/500A
- Displays voltage, current, and power waveforms
- Measures RMS, Peak, and Total Harmonic Distortion of voltage and current
- Displays harmonic detail in bar graph format
Fluke 438-II Power Quality Analyzer & Motor Analyzer
- Measure key parameters on direct-on-line motors and motors driven by specific variable frequency drive systems including torque, RPM, mechanical power and motor efficiency
- Perform dynamic motor analysis by plotting of motor de-rating factor against load according to NEMA guidelines
- Calculate mechanical power and efficiency without the need of mechanical sensors, just connect to the input conductors and you’re ready to go
Fluke 437-II Three-Phase Power Quality Analyzer
- Energy loss calculator: quantified to pinpoint true system energy losses in dollars
- Power inverter efficiency: simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
- Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics
Fluke 437 Three Phase Energy & Power Quality Analyzer
- Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
- PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
- Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses
Fluke 435-II Power Quality & Energy Analyzer
- Quickly see how much money losing due to energy waste in terms of real dollars
- Easily see how motor startups are affecting motor drive performance
- Get at-a-glance power quality health data in real-time so you can make better maintenance decisions
Fluke 375 True-RMS AC-DC Clamp Meter
- iFlex flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.
- CAT IV 600 V, CAT III 1000 V
- True-rms ac voltage and current for accurate measurements on non-linear signals
Fluke 3540 FC Three-Phase Power Monitor & Condition Monitoring Kit
- Measures: Single, split, or three phase loads Voltage, current, and frequency Active power, non-active power, and power factor Total harmonic distortion
- Single, split, or three phase loads
- Voltage, current, and frequency
Fluke 345 Power Quality Clamp Meter
- AC/DC current: Clamp-on measurement of ac current up to 1400 A rms and dc current up to 2000 A without breaking the circuit
- Highest safety rating: 600 V CAT IV power analyzer is rated for use at the service entrance
- Accurate in noisy environments: Clamp meter performs even with distorted waveforms present on electronic loads with low-pass filter
Hioki 3169-20 Clamp-On Power HiTester
- Measure up to 3-phase, 3-wire system (displays voltage and current for three lines)
- Measure up to four single-phase, 2-wire systems
- 5A to 5000A range
