CA Instruments 2003RP Programmable AC Power Source

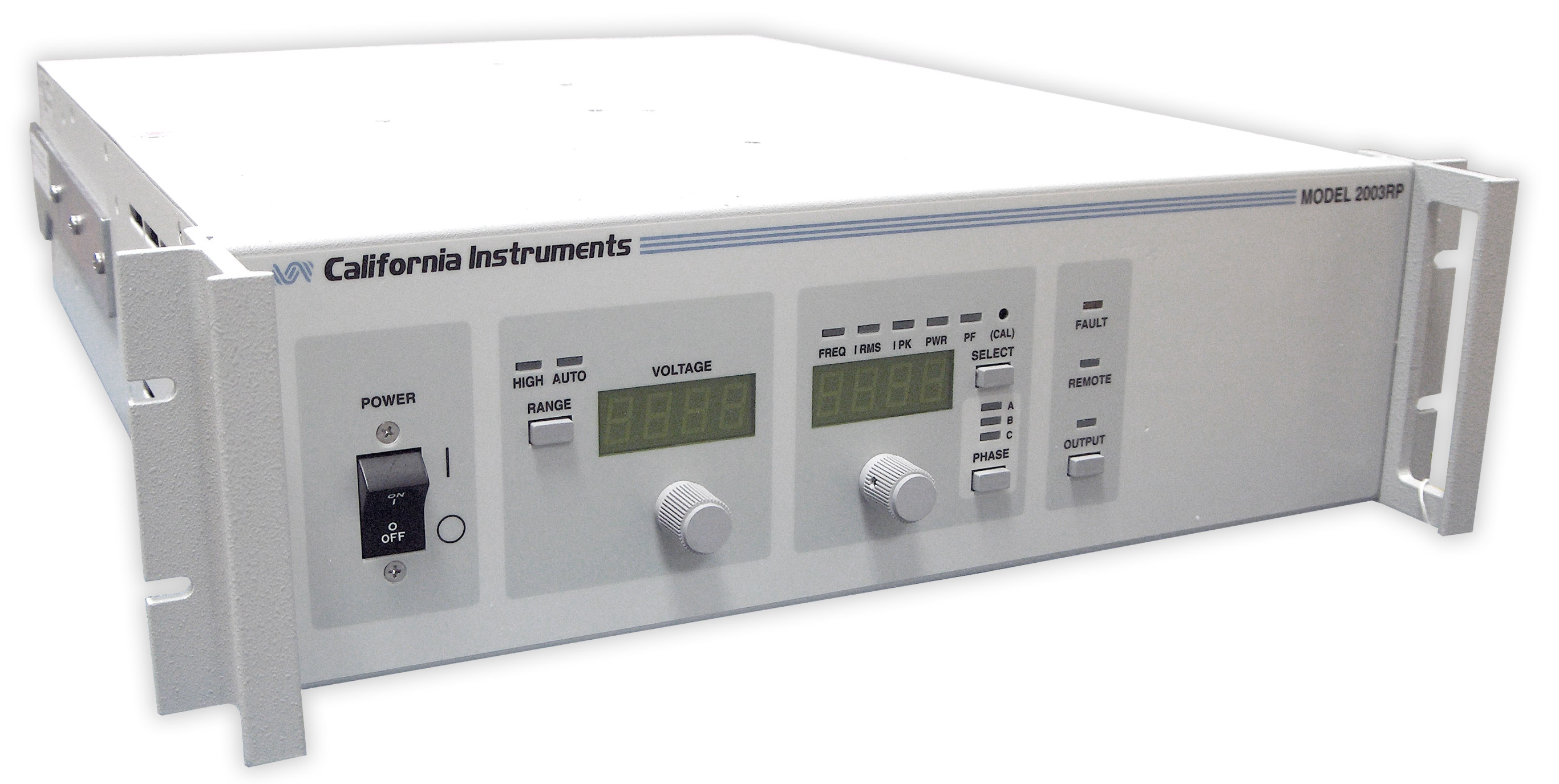

Offering simple rotary front panel controls, the 2003RP programmable AC power source is ideally suited for a wide range of three phase AC power applications. Selectable input voltage ranges allow this product to be used anywhere in the world to provide a convenient source of variable utility power for the testing and evaluation of domestic and commercial equipment.
In addition, the frequency range extends to 5000 Hz, making this product ideal for a wide range of avionics and defense applications. Accurate measurement functions are available as an option to eliminate the need for external test equipment in many test setups. Voltage, current, peak current, power, and power factor for each individual phase output can be read on the large LCD display or over the bus. A programmable current limit function provides overload protection of the unit under test.
| Controller | |
| Type | Programmable |
| Controls | Digital Encoders |
| Readouts | dual 4 digit LCDs |
| Output | |
| No. of Phases | 3 (A,B,C) |
| Phase Angles | A = 0°, B = 240°, C = 120° |
| AC Power | Max 675 VA per phase |
| Load Connection | floating neutral Rear panel terminal block optional Universal front panel sockets |
| Voltage | |
| Ranges (High / Low) | 0 - 270 / 0 - 135 V RMS |
| Accuracy | 16 Hz - 100 Hz ± 0.1 % FS 100 Hz - 2000 Hz ± 0.2 % FS |
| Resolution | 0.1 V |
| Load Regulation | remote sense, 16 - 500 Hz, ± 0.1 % FS |
| Line Regulation | 10 % Line change ± 0.02 % FS |
| T.H.D. (into a resistive load) | 16 Hz - 100 Hz 0.5 typ./ 1.0 max. % 100 Hz - 5000 Hz 1.0 typ./ 2.0 max. % |
| Output Noise | < 0.1 typ. V RMS |
| Frequency | |
| Range | 16 - 5000 Hz |
| Accuracy | ± 0.02 % |
| Resolution | 16.00 Hz - 80.00 Hz 0.01 Hz 80.1 Hz - 800.0 Hz 0.1 Hz 800 Hz - 5000 Hz 1 Hz |
| Current | |
| RMS Current | High / Low V range 2.5 / 5.0 A RMS |
| Peak Current | High / Low V range 7.5 /15.0 A |
| Protection | |
| Adj. Current limit | Resolution 0.1 A RMS Modes Const. Current or Const. Volt |
| Input | |
| Connection | Rear panel terminal block |
| Line Voltage | 2 wire + GND 103 - 127 V or 187 - 253 V RMS |
| Line Current | 47 - 440 Hz |
| Holdup Time | 10 ms |
| Isolation | Input to Chassis/Output 1350 / 2200 V |
- 675 VA Output Power per Phase - 5.0 ARMS current per phase
- 16 Hz to 5000 Hz Frequency Range: Commercial, Military and Avionics applications
- High Peak Current Capability: Drives a wide variety of non-linear loads
- Accurately measures
- TRMS Volt
- TRMS Current
- Peak Current
- Crest Factor
- Real Power
- Power Factor
- Remote Control: IEEE-488 and RS232C Interface for automated test applications. Includes Windows™ operating software
