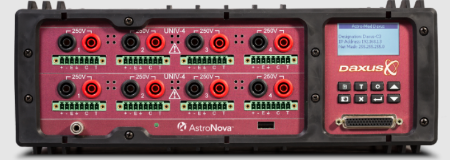

AstroNova Daxus DXS-100 Data Acquisition System

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Larger

SKU: ASTR-DAXUS

Categories

The AstroNova Daxus Data Acquisition System is capable of up to 48 channels with a sampling rate of 200kS/s per channel or as low as 1 Sample/Minute. The Daxus can be configured with different modules depending on the measurement application, allowing for the ability to perform voltage, DC bridge, thermocouple, RTD, and IEPE data acquisition. This is all done using the UNIV-4 module, but other modules are available for dedicated measurement requirements.

With the use of the Daxus application software on a PC, view your data in real-time or playback in Scope Mode. Data can be analyzed in this application with built-in measurements such as average, Min-Max, Peak-Peak, slope, RMS, Sum, Std Deviation, and others. Also convert your data from time domain to frequency domain by using the Fourier Transform capability.

ATEC provides DAQ rentals from AstroNova with calibration, stocked for immediate delivery.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Recording Method	Internal Disk Drive
Maximum Sample Rate	200kS/s/channel
Minimum Sample Rate	1S/min
Multiple Sample Rates	Up to 3 Different Rates
Maximum Channels	32 (vary per module)
Pre-capture Filter	Lowpass, highpass, bandpass, bandstop
Advanced DSP	RMS, Integration, Differentiation
Post-capture Filter	Lowpass, highpass, bandpass, bandstop, RMS
Counter Modes	Gated time frequency counter, cycle based frequency counter, pulse counter, pulse width detector, period width detector, duty cycle detector, quadrature counter, edge separator (module dependent)
Math Functions	Addition, Subtraction, Multiplication, Division, Trigonometric, Statistical and other general math functions
Input Power	100-240VAC/50-60Hz/70W
Battery Life	20 Minutes (4 Hour Charge)
Battery Type	Lithium Ion (Rechargeable)
