| Rated Output Power |
750 to >850 W (1.0 - 4.2 GHz)
500 to >600 W (4.2 - 6.0 GHz) |
| Input for Rated Output |
1 mW |
| Power Output for 1 dB Compression |
600 to >700W (1.0 - 4.2 GHz)
400 to >500W (4.2 - 6.0 GHz) |
| Power Output for 3 dB Compresion |
700 to > 800W (1.0 - 4.2 GHz)
475 to >575W (4.2 - 6.0 GHz) |
| Operating Frequency |
1 - 6 GHz |
| Gain (at max setting) |
66 dB |
| Flatness |
±2.5 dB max |
| Gain Adjustment |
10 dB to 15 dB |
| Input Impedance |
50 Ω, VSWR 2:1 max |
| Output Impedance |
50 Ω |
| Harmonic Distortion |
-20 dBc max |

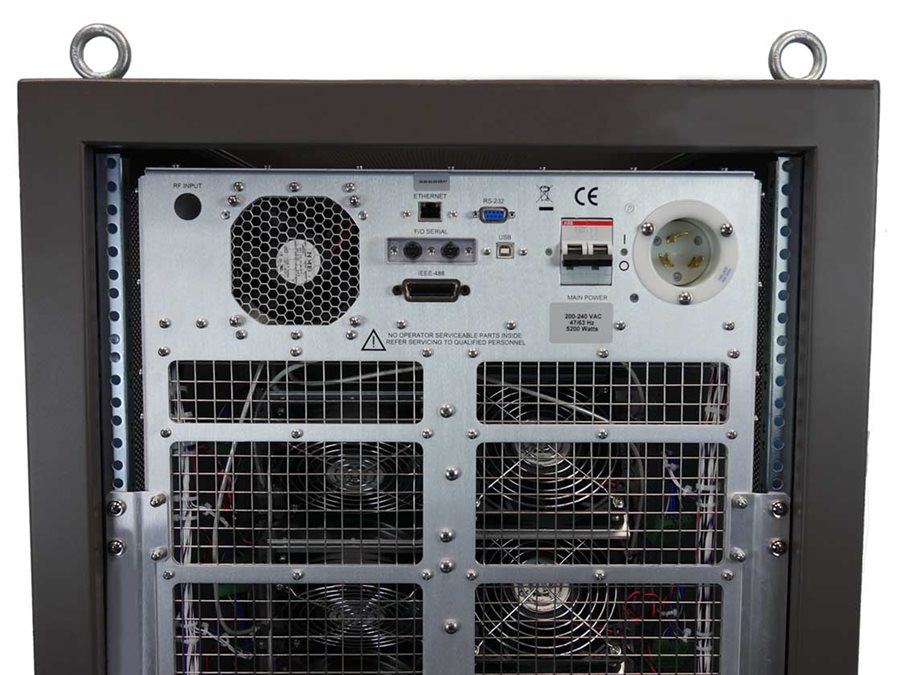

| Connector Types |
RF Input: N female (50 Ω), rear
RF Output: 7-16 DIN female (50 Ω), rear
RF Sample: N female (50 Ω), rear (57dB typical) |
| Dimensions (W x H x D) |
22.6 in x 53.5 in x 26.5 in |
| Weight |
448 lbs |
