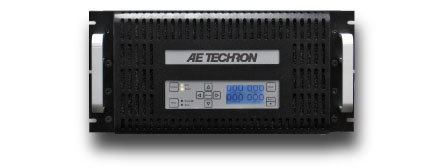

AE Techron 7548 Audio Power Amplifier
The AE Techron 7548 Audio Power Amplifier is a DC-enabled and high-power device. With a power response of DC to 200 kHz, a maximum continuous output power of 3300 watts RMS, and an input power of 208 VAC / 3ph, the AE Techron 7548 is the ideal model for meeting a variety of testing needs. The AE Techron 7548 has a slew rate of >35 V/µSec and both voltage and current modes. The device has user-friendly applications that allow for easy and precise operation.
| Model | 7548 |
| Maximum Continuous Output Power | 3300 watts RMS |
| Power Response | DC to 200 kHz |
| Slew Rate | >35 V/µSec |
| Input Power | 208 VAC / 3ph |
| Operating Temperature | 10°C to 50°C (50°F to 122°F) Maximum output power de-rated above 30°C (86°F) |
| Humidity | 70% or less, non-condensing |
| Cooling | Forced air cooling |
| Dimensions | 19 x 22.8 x 8.75 in (48.3 x 57.9 x 22.2 cm) |
| Weight | 103 lb. (46.7 kg) |
- Four-quadrant operation (source and sink)
- Field-selectable controlled-voltage or controlled-current modes of operation
- Continuous system output
- Can be combined to form larger, more capable systems: Single-phase AC system with DC offset capable of 120 VAC, 240 VAC, or 360 VAC, or three-phase AC system with DC offset capable of 208 VAC, 400 VAC, or up to 600 VAC L-L
- Can be switched between rail supply modes to optimize for various load impedances
- Protection circuitry protects the amplifier from input overloads, improper output connection (including shorted and improper loads), over-temperature, over-current, and supply voltages that are too high or low
SKU: AETE-7548
